Regular price£5,399.00
/
Tax included. Shipping calculated at checkout.

Size
  • Low stock - 1 item left
  • Inventory on the way
Size chart

Here you will find the best approximate information on optimal sizing that we can offer. Sizing varies by the manufacturer, type of bike, and other variants but this rough guide should help give you an idea. Sizing can also be individually subjective so If you have any more specific requirements regarding this information, we highly recommend calling our expert staff on 01268 695877 or coming into the shop.

We also recommend researching the manufacturer of the bike you are interested in directly - many manufacturer websites now offer a dedicated fit/size guide where you can enter your measurements on official websites.

Scott Bikes Size Chart (click here/see below)



 General E-Bikes (Men & Women)

Your Height Inside Leg Road E-bikes Mountain E-bikes Hybrid/City/Trek E-bikes
147cm-152cm / 4'10"-5'0" 66cm / 26" 47, 48cm (Extra Small) 13” (Extra Small) 13”, 14" (Extra Small)
152cm-160cm / 5'0"-5'3" 69cm / 27" 49, 50cm (Extra Small) 13”, 14” (Extra Small) 14”, 15” (Extra Small or Small)
160cm-170cm / 5'3"-5'7" 71cm / 28" 51, 52, 53cm (Small) 15”, 16" (Small) 15”, 16" (Extra Small or Small or Medium)
170cm-175cm / 5'7"-5'9" 76cm / 30" 54, 55cm (Medium) 17", 18” (Medium) 17", 18” (Small or Medium)
175cm-180cm / 5'9"-5'11" 79cm / 31" 56, 57, 58cm (Medium or Large) 18”, 19" (Medium or Large) 19”, 20" (Medium or Large)
180cm-188cm / 5'11"-6'2" 81cm / 32" 59, 60cm (Large or Extra Large) 19", 20” (Large or Extra Large) 20", 21” (Large or Extra Large)
188cm-196cm / 6'2"-6'5" 86cm / 34" 60, 61, 62cm (Extra Large) 20", 21”, 22” (Large or Extra Large) 21”, 22” (Large or Extra Large)
196cm+ / 6' 5"+ 91cm / 36" 62, 63cm (Extra Large or bigger) 23", 24” (Extra Large or bigger) 23", 24” (Extra Large or bigger)

General Bikes (Men)

Your Height Inside leg Road Bikes Mountain Bikes Hybrid/City Bikes
147cm-152cm / 4'10"-5'0" 66cm / 26" 47, 48cm (Extra Small) 13” (Extra Small) 13”, 14" (Extra Small)
152cm-160cm / 5'0"-5'3" 69cm / 27" 49, 50cm (Extra Small) 13”, 14” (Extra Small) 14”, 15” (Extra Small or Small)
160cm-170cm / 5'3"-5'7" 71cm / 28" 51, 52, 53cm (Small or Medium) 15”, 16" (Small or Medium) 15”, 16" (Small)
170cm-175cm / 5'7"-5'9" 76cm / 30" 54, 55cm (Medium) 17", 18” (Medium) 17", 18” (Medium)
175cm-180cm / 5'9"-5'11" 79cm / 31" 56, 57, 58cm (Medium or Large 18”, 19" (Medium or Large) 19”, 20" (Medium or Large)
180cm-188cm / 5'11"-6'2" 81cm / 32" 59, 60cm (Large or Extra Large) 19", 20” (Large or Extra Large) 20", 21” (Large or Extra Large)
188cm-196cm / 6'2"-6'5" 86cm / 34" 60, 61, 62cm (Large or Extra Large) 20", 21”, 22” Large or Extra Large) 21”, 22” (Large or Extra Large)
196cm+ / 6' 5"+ 91cm / 36" 62, 63cm (Extra Large or bigger) 23", 24” (Extra Large or bigger) 23", 24” (Extra Large or bigger)

General Bikes (Women)

Your Height Inside leg Women's Road Bikes Women's Mountain Bikes Women's Hybrid/City Bikes
147cm-155cm / 4'10"-5'1" 66cm / 26" 44, 45, 46cm (Extra Small or smaller) 13”, 14" (Extra Small or smaller) 13”, 14" (Extra Small or smaller)
155cm-160cm / 5'1"-5'3" 69cm / 27" 47, 48, 49cm (Extra Small or Small) 13”, 14” (
Extra Small or Small)
14”, 15” (Extra Small or Small)
160cm-165cm / 5'3"-5'5" 71cm / 28" 50, 51, 52cm (Small) 15”, 16" (Small) 15”, 16" (Small)
165cm-172cm / 5'5"-5'8" 76cm / 30" 53, 54, 55cm (Medium) 17", 18” (Medium) 17", 18” (Medium)
172cm+ / 5'8"+ 79cm / 31" 56, 57cm (Large) 19" (Large) 19" (Large)

General Bikes (Kids)

Approx. age Min. inside leg Wheel size
1-2 years 24cm / 9" 10"
2-3 years 31cm / 12" 12"
3-4 years 38-43cm / 15-17" 14"
4-5 years 48cm / 19" 16"
5-7 years 52-58cm / 20-23" 20"
8-12 years 62-67cm / 24-26" 24"
10-14 years 69-78cm / 27-31" 26"
  • Delivery usually within 3 - 5 Working Days for non-Electric Bikes, 5 - 7 Working Days for E-Bikes, see our delivery page.
  • FREE Bike Build, FREE Delivery Over £1000
  • See widgets above for V12/Klarna finance options.
  • 30 Day No-Hassle Returns, Full Manufacturer Warranty
  • Les's Cycles - Open Since 1976!

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

As one of the BIGGEST Independent UK Bike Shops, Les's Cycles process multiple Cycle To Work scheme orders everyday, dispatching bikes across the UK. All voucher related sales are subject to availability and our discretion to accept them*

IMPORTANT NOTE REGARDING SALE BIKES: Any bike that has been reduced in value still CAN be acquired but customers will need to cover the fees imposed on us by the scheme provider(s), listed below. Unfortunately the charges imposed by scheme providers are very high, much higher than usual transactional fees. There is no flexibility with this and we only offer sale or reduced products on scheme services as a gesture of goodwill to our customers.

You can either add the surcharge to your voucher total or pay it separately.

Example scheme provider fees for SALE PRICE ONLY** bicycles;

WE RECOMMEND: Gogeta.bike: 0% - NO FEES ON ANY BIKE!

Greencommuteinitiative.uk (GCI): 5%
Bike2workscheme.co.uk: 10%
Cyclesolutions.info: 10%
Cyclescheme.co.uk: 10%
Vivup: 12.5%
**Cycle2Work: 15% (a fee may be payable on some full price models)
**Halfords Cycle2Work: 15% (a fee may be payable on some full price models)

To get started and place an order:

SEND US A EMAIL - We'll need you to provide details on the scheme you wish to use and the bike and size required so that we can confirm its available. If you are not ready to immediately proceed, you will be advised to place a small non-refundable deposit to hold the bike. The deposit will be refunded upon completion or cancellation. If after six weeks you do not redeem an order with us after reserving a bike, deposits are non-refundable and can only be converted to store credit.

For more specific information on any scheme or to ask if we can accept an unlisted scheme, please contact us or visit the shop!

Providers:

Greencommuteinitiative.uk

Gogeta

Bike2workscheme.co.uk

Cyclesolutions.info

c2w-support.co.uk


Cyclescheme.co.uk

https://www.cyclescheme.co.uk/retailer/less-cycles-retail-store

Halfords Cycle2Work

*We reserve the right to decline the use or acceptance of a voucher where we decide not to for any reason, at our discretion.

TWO BIKES IN STOCK AND READY! FINANCE IS ONLY POSSIBLE IN-STORE CURRENTLY ON THIS PRODUCT. NO 0% OPTIONS.

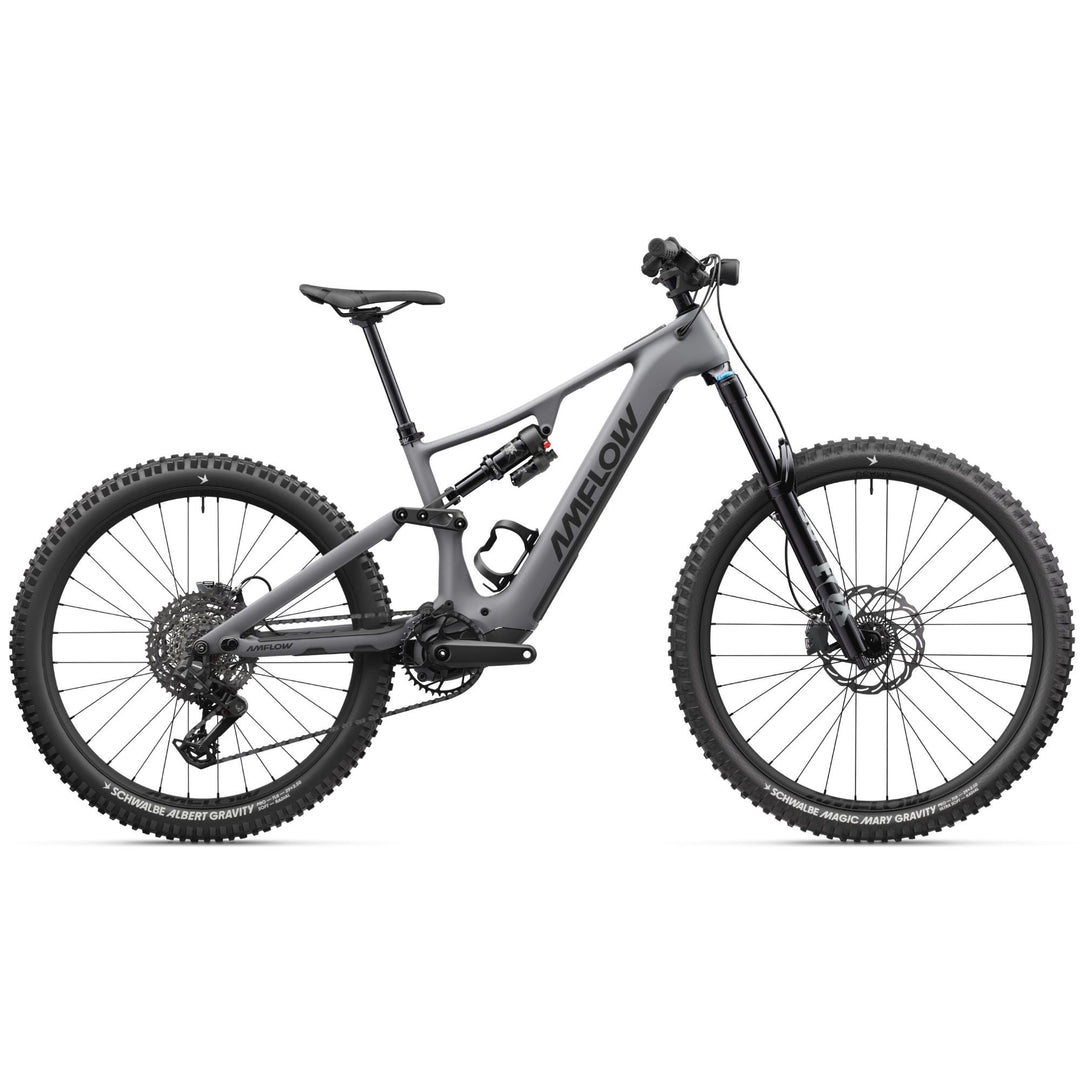

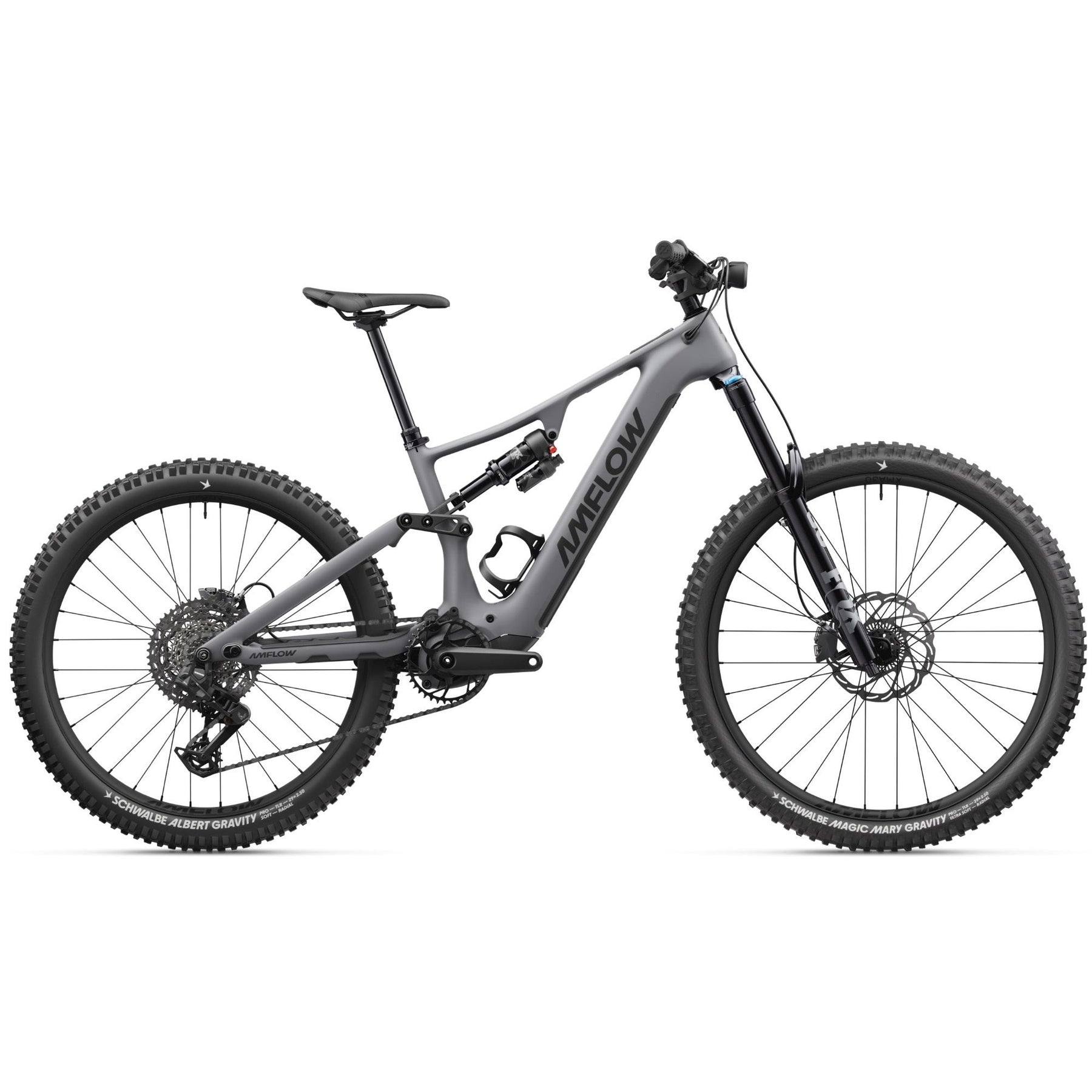

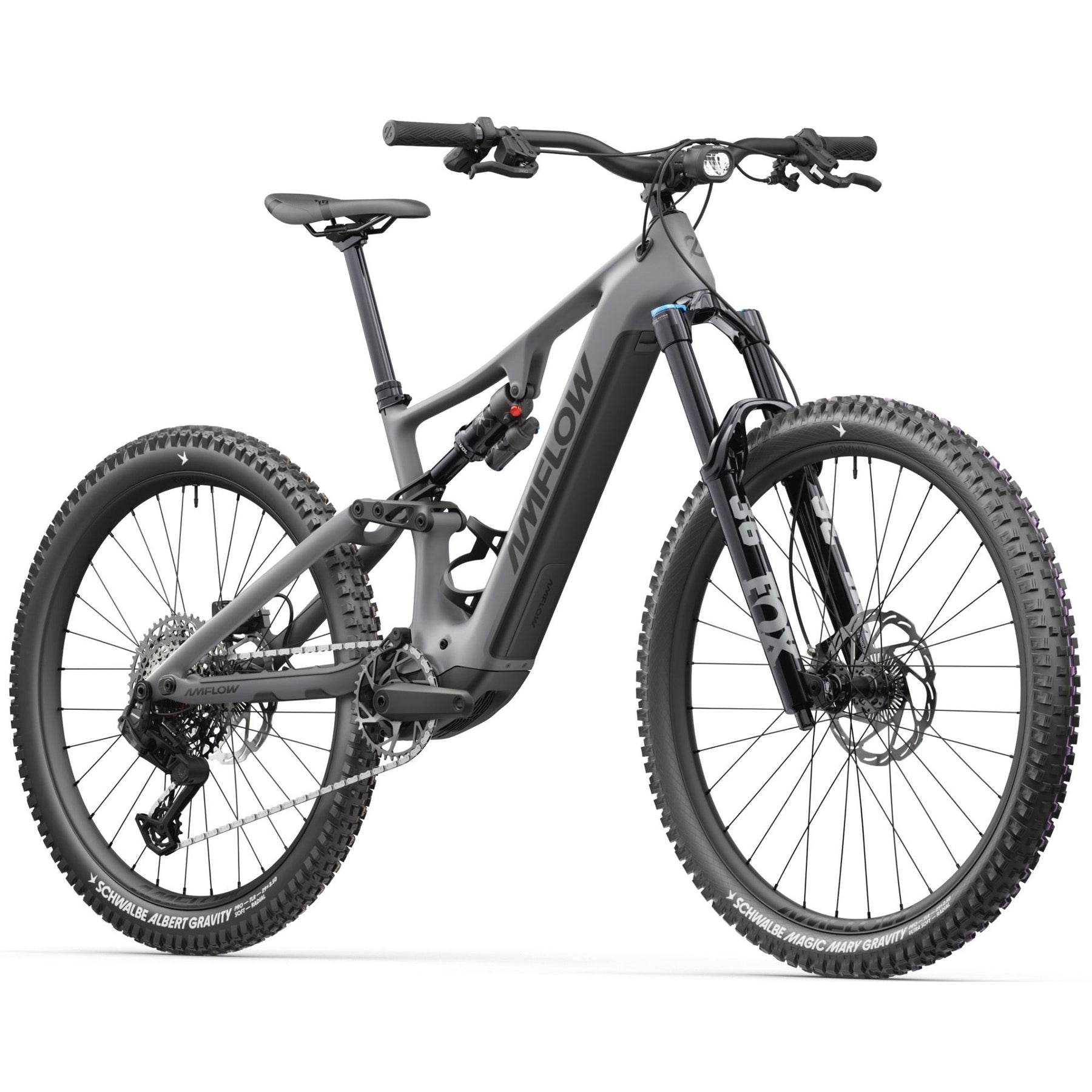

The Amflow PR Carbon Pro Full Suspension e-Bike combines a full carbon frame with high motor output and adjustable trail geometry. Its Avinox M2S drive unit delivers up to 150Nm of torque and 1500W of peak power in Boost mode. An 800Wh removable battery, FOX suspension and premium trail parts support long and demanding rides.

Key Features and Benefits:

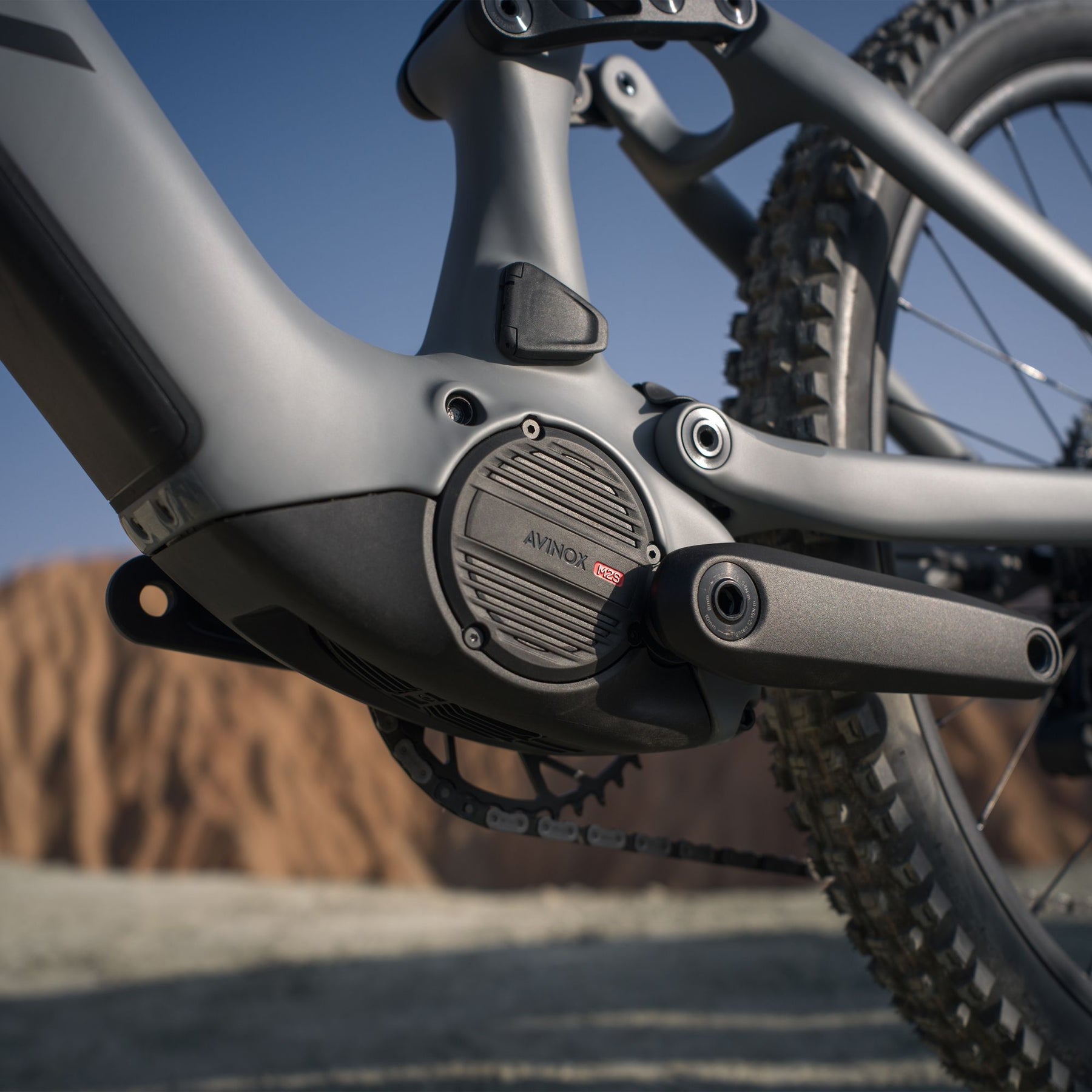

Avinox M2S Drive Unit: The compact motor provides 130Nm of nominal torque and up to 150Nm in Boost mode. Peak power reaches 1500W, which gives you strong support on steep climbs and through slow, technical sections.

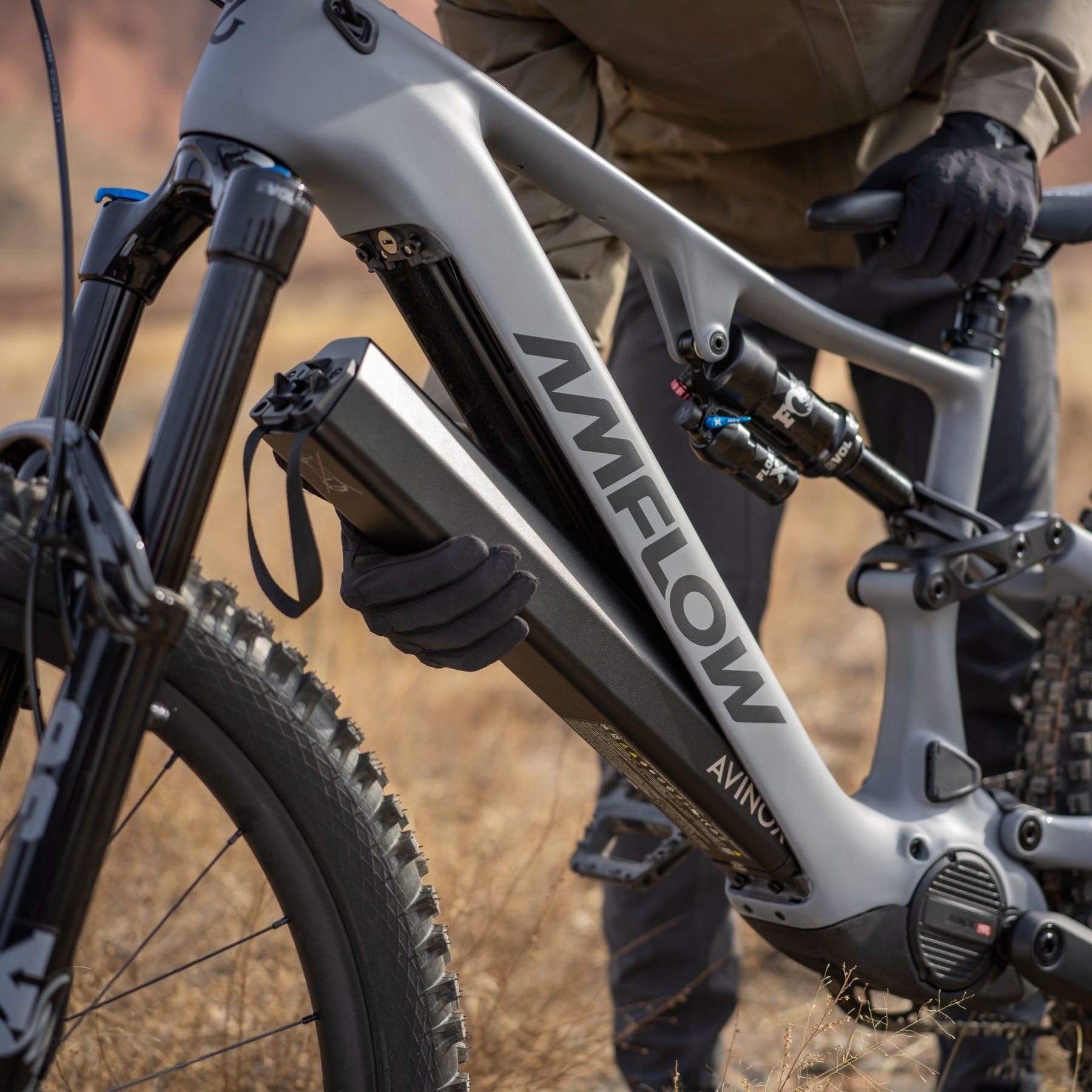

Removable 800Wh Battery: The high-capacity battery supports long rides with less need to stop and recharge. It can be removed for indoor charging or replaced, which also makes battery care and transport easier.

508W Fast Charger: The supplied 12A fast charger delivers up to 508W of charging power. It can charge the battery from 0% to 80% far faster than the standard 168W charger, which reduces the time between rides.

Adjustable Carbon Frame Geometry: Five headset angle settings, two bottom bracket positions and four chainstay settings provide up to 40 geometry options. You can tune stability, cornering response, pedal clearance and climbing control to suit the terrain.
FOX Performance Suspension: A 160mm FOX 36 Performance fork uses a GRIP damper with compression and rebound adjustment. The FOX Float X Performance rear shock has a custom tune and two-position lever, giving the bike firm support under load and controlled movement over rough ground.

Magura Gustav Pro Brakes: Four-piston hydraulic callipers work with large 203mm rotors that are 2.5mm thick. This creates strong and consistent braking force, with better heat control during long or steep descents.

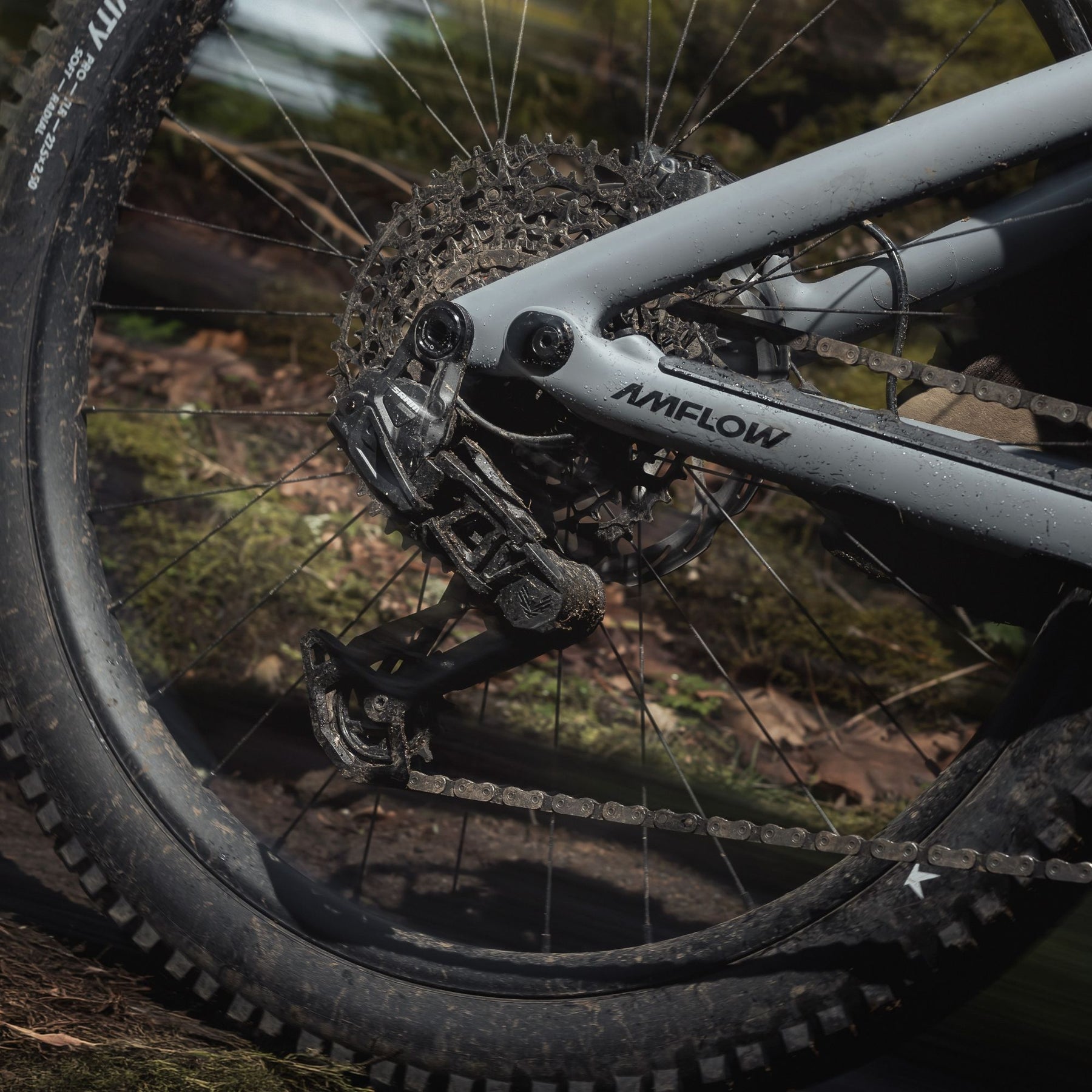

SRAM Eagle Transmission: The electronic SRAM S1000 Eagle Transmission uses a wide-range 10-52T cassette and AXS Pod controls. Avinox Smoothshift integration lets the system change gear while coasting, so you can select the right ratio before you start pedalling again.

Mullet Wheels and Schwalbe Radial Tyres: The 29-inch front wheel rolls through holes and rough ground with greater stability, while the 27.5-inch rear wheel helps the bike turn and change direction. Schwalbe Magic Mary and Albert Gravity Pro tyres provide dependable grip and support on loose and steep trails.

The PR Carbon Pro is built to provide controlled support across full days of technical trail riding. Its motor gives you the power needed for repeated climbs, while the large removable battery helps maintain range. Adjustable geometry and tuned FOX suspension allow the handling to be set for fast descents, steep ground or tighter trails.

Choose the Amflow PR Carbon Pro for a powerful carbon e-bike with adaptable handling, long-range capacity and proven trail components. It offers a complete setup for riders who need strong climbing support without losing control on the descent.

Frame Amflow PR Carbon Pro Frame
Colour Basalt Grey
Geometry adjustment 40 adjustable geometry configurations
Rear wheel compatibility Compatible with 27.5" and 29" rear wheels
Drive unit Avinox M2S Drive Unit
Torque 130 N·m nominal; 150 N·m peak

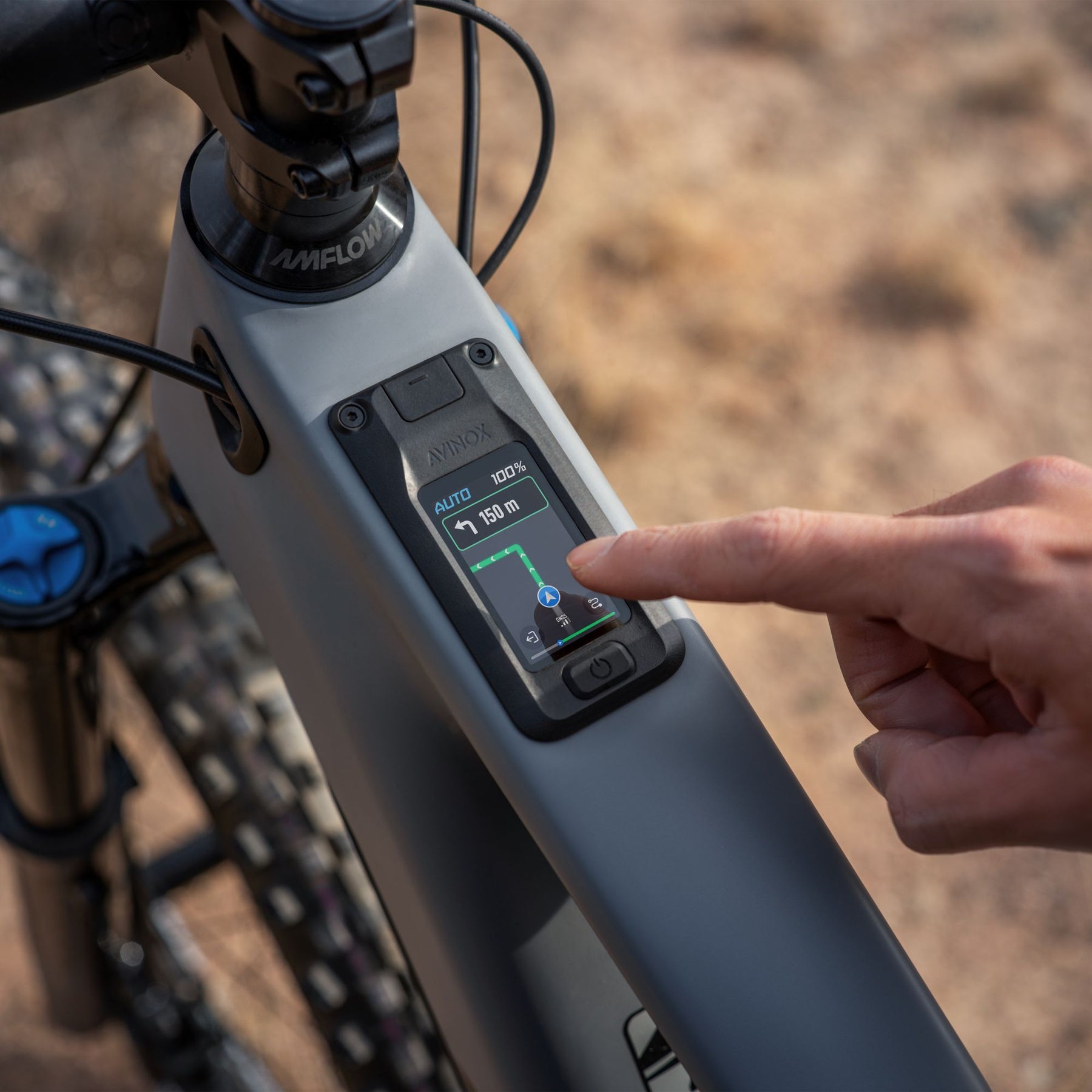

Display Avinox 2" OLED Control Display
Battery Avinox removable battery, 800 Wh
Controllers Avinox wireless controllers, left and right
Charger Avinox fast charger, 12 A / 508 W
Model FOX Float X Performance
Details 2-position lever, custom tune, LSR adjustment, 210 × 55 mm air shock
Fork FOX 36 Performance
160 mm travel, GRIP damper, Sweep/LSR adjustment, 15 × 110 mm, 44 mm offset
Rear derailleur SRAM S1000 Eagle Transmission
Chainring SRAM Eagle Transmission DM 38T for Avinox
Shifter SRAM AXS Pod Controller
Cassette SRAM XS-1270 Eagle Transmission, 10-52T
Chain SRAM Eagle 70 Transmission Flattop Chain
Derailleur power Avinox M2 Series electronic rear derailleur power cable (SRAM AXS extension cable)
Crank Avinox SL; M/L: 155 mm, XL/XXL: 160 mm
Brake Magura Gustav Pro hydraulic disc brake, 4-piston calipers
Rotor Magura sensor rotor, 203 mm × 2.5 mm
Wheelset Amflow XMA-30 Mullet
Front rim Alloy, 29", 30 mm internal width, 32H, tubeless ready
Rear rim Alloy, 27.5", 30 mm internal width, 32H, tubeless ready
Spokes SAPIM E-Light
Front hub Alloy, 2 sealed bearings, 15 × 110 mm thru-axle, 32H, 6-bolt
Rear hub Alloy, 4 sealed bearings, 12 × 148 mm thru-axle, 32H, 6-bolt, 4-pawl 36T, HG
Front tyre Schwalbe Magic Mary Radial, 29 × 2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear tyre Schwalbe Albert Radial, 27.5 × 2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar Amflow Enduro alloy handlebar
Handlebar dimensions 40 mm rise, 800 mm width, 35 mm diameter
Handlebar angles 5° upsweep, 9° backsweep
Grips Amflow Enduro Grip 2 lock-on grips
Stem Amflow split MTB stem
Stem dimensions 35 mm length; 35 mm clamp diameter
Saddle Amflow mountain saddle
Dropper shim Amflow dropper post shim; travel adjustment 0/5/10/15/20 mm
Dropper travel M: 190 mm; L/XL: 210 mm; XXL: 230 mm
Disclaimer Some spec may be changed or different than pictured
