Scott

The SCOTT Spark 920 boasts a super light HMF Carbon Fiber mainframe with an Alloy swingarm. The 920 comes equipped with a custom FOX Nude shock, a Sram Eagle 12 speed drivetrain and our TwinLoc Suspension System to always optimize your ride. It's the perfect partner for marathons, stage races, and all day fun.

KEY FEATURES

• Spark Carbon HMF-Alloy Frame
• TwinLoc Suspension System
• Grip3 remote, 3-Modes, 15x110mm QR axle, Lockout
• SCOTT custom w. travel & geo adj., 3 modes, Travel 120-85-Lockout
• Syncros Silverton 2.5 TR Wheels
• FOX Dropper Post, Syncros Parts

Product	Scott Spark 920 Bike
Model Year	2019
Riding Type	Cross Country, Trail
Wheel Size	29"
Frame Material	Carbon Fiber
Frame Material Details	HMF carbon frame with SL 6011 alloy swingarm
Rear Travel	120mm
Rear Shock	FOX Nude EVOL Trunnion, Scott custom with travel and geo adjust, 120mm-85mm, 3 modes (Lockout, Traction Control, Descend), DPS, rebound adjust, 165mm X 45mm
Fork	FOX 34 SC Float Performance Air, GRIP3 with 3 modes, rebound adjust, lockout, 15x110mm QR axle, 44mm offset
Fork Travel	120mm
Head Tube Diameter	Tapered
Headset	Syncros Pro Drop in
Handlebar	Syncros FL1.5 T-Bar, 7050 double butted alloy, flat, 31.8mm diameter, 9°, 740mm width
Stem	Syncros FL1.5, 2014 alloy, integrated spacer and top cap, 6°, 31.8mm diameter, Garmin mount Stem length: 50mm (S), 60mm (M), 70mm (L), 80mm (XL)
Grips	Syncros Pro lock-on
Brakes	Shimano SLX M7000 with SM-RT66 rotors (180mm front and rear)
Brake Levers	Shimano SLX M7000
Drivetrain	1x
Shifters	SRAM GX Eagle, 12-speed
Front Derailleur	Direct mount (none included)
Rear Derailleur	SRAM GX Eagle, 12-speed
ISCG Tabs	No
Chainguide	Scott custom integrated
Cranks	SRAM GX Eagle DUB Boost
Chainrings	32 tooth
Bottom Bracket	SRAM DUB PF integrated, 41x92mm
Pedals	None included
Chain	SRAM CN GX Eagle
Cassette	SRAM GX XG1275, 10-50 tooth, 12-speed
Rims	Syncros Silverton 2.5, 25mm tubeless ready, 28 hole
Hubs	Syncros Silverton 2.5, XD driver, 15x110mm (front), 12x148mm Boost (rear), DT RWS lever
Spokes	Syncros Silverton 2.5
Tires	Maxxis Rekon 29 x 2.4", TR, EXO, 3C Maxx Terra, 120 tpi, Kevlar Bead (front and rear)
Saddle	Syncros XR2.0, chromoly rails
Seatpost	FOX Transfer Dropper Remote, 100mm (S), 125mm (M, L, XL)
Seatpost Diameter	31.6mm
Seatpost Clamp	Syncros single bolt
Rear Dropout / Hub Dimensions	12mm x 148mm Boost
Max. Tire Size	29 x 2.6"
Bottle Cage Mounts	Yes
Colors	Black/Green
Warranty	5 years for frame and swing arm, 2 years for fork
Weight	27 lb 12.5 oz (12,600 g)
Miscellaneous	TwinLoc suspension system,GRIP3 remote, 3 modes Syncros Trail fender included

The Spark 900 RC Team features a slew of high end components in an affordable package. Our TwinLoc Suspension System, a 12 speed Sram Eagle drivetrain, Shimano brakes and Syncros components combine to create a dreamworthy carbon full suspension race bike.

KEY FEATURES

• Spark RC Carbon HMF Frame
• TwinLoc Suspension System
• Custom Charger remote damper with 3-Modes, 15x110mm Maxle Stealth, Lockout
• SCOTT custom w. travel & geo adj., 3 modes, Travel 100-70-Lockout
• Syncros Silverton 2.5 TR Wheels
• Syncros Parts

Product	Scott Spark RC 900 Team Bike
Model Year	2019
Riding Type	Cross Country
Wheel Size	29"
Frame Material	Carbon Fiber
Frame Material Details	HMF carbon frame and carbon swingarm
Rear Travel	100mm
Rear Shock	FOX Nude EVOL Trunnion, Scott custom with travel and geo adjust, 100mm-70mm, 3 modes (Lockout, Traction Control, Descend), DPS, rebound adjust, 165mm X 40mm
Fork	RockShox SID RL3 Air, custom Charger damper with 3 modes, rebound adjust, lockout, 15x110mm Maxle Stealth axle
Fork Travel	100mm
Head Tube Diameter	Tapered
Headset	Syncros Pro Drop in
Handlebar	Syncros FL1.5 T-Bar, 7050 alloy double butted, flat, 31.8mm diameter, 9°, 720mm width
Stem	Syncros XR1.5 -8°, 2014 alloy, integrated spacer and top cap, 31.8mm diameter, Garmin mount Stem length: 60mm (S), 70mm (M), 80mm (L), 90mm (XL)
Grips	Syncros Pro lock-on
Brakes	Shimano SLX M7000 Disc with SM-RT66 rotors (180mm front, 160mm rear)
Brake Levers	Shimano SLX M7000
Drivetrain	1x
Shifters	SRAM GX Eagle, 12-speed
Front Derailleur	No
Rear Derailleur	SRAM GX Eagle, 12-speed
ISCG Tabs	No
Chainguide	Scott custom integrated
Cranks	SRAM GX Eagle DUB Boost
Chainrings	32 tooth
Bottom Bracket	SRAM DUB PF integrated, 41x92mm
Pedals	None included
Chain	SRAM CN GX Eagle
Cassette	SRAM GX XG1275, 10-50 tooth, 12-speed
Rims	Syncros Silverton 2.5, 25mm tubeless ready, 28 hole
Hubs	Syncros Silverton 2.5, 6 bolt, XD driver, 15x110mm (front), 12x148mm Boost (rear), DT RWS lever
Spokes	Syncros Silverton 2.5
Tires	Maxxis Rekon Race 29 x 2.35", TR, EXO, 120 tpi, Kevlar Bead, Syncros Eco Sealant (front and rear)
Saddle	Syncros XR2.0, chromoly rails
Seatpost	Syncros FL1.5, 10mm offset, 400mm length
Seatpost Diameter	31.6mm
Seatpost Clamp	Syncros quick release
Rear Dropout / Hub Dimensions	12mm x 148mm Boost
Max. Tire Size
Bottle Cage Mounts	Yes
Colors	Orange
Warranty	5 years for frame and swing arm, 2 years for fork
Weight	25 lb 2.1 oz (11,400 g)
Miscellaneous	TwinLoc suspension system, custom Charger remote, 3 modes Transport axle included Dropper post ready

From the carbon fibre to the manufacturing process to the final result- the Scale is the pinnacle of modern MTB design. The result is a benchmark for race hardtail frames. A mix of high-end carbon fibers has been used on all Scale Carbon frames in order to achieve incredible results. After choosing the Carbon fibers, engineers use specific tools, like FEA software, to map out the carbon lay-up. Thanks to SCOTT’s proprietary EvoLap Technology, different forces can be applied on a virtual model and the frame construction is adjusted accordingly. SDS2 technology achieves comfort, both when seated and when standing, without additional heavy parts or without sacrificing stiffness. In order to achieve this, Scott engineers used different tube shapes in combination with a strategic alignment of the carbon fibres to allow specific areas of the frame to flex and provide comfort, while avoiding any undesirable flex in other areas that can impair performance. The Scale dropouts are designed to be integrated on the thru-axle system thanks to a hollow tube design that allows a simple and lightweight carbon structure.

The SCOTT Scale 920 has geometry inspired by racing at the highest level. A Shimano drivetrain and Syncros components combine to give you a hard tail that is just itching to finish first.

Frame	Scale 3 Carbon / IMP technology / MF BB92 / SW DM dropouts for Boost 12x148mm SDS2 advanced Shock & Standing Damping System ICCR Cable routing
Fork	FOX 32 Float Rhythm Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer Reb. Adj. / Lockout / 100mm travel
Rear Derailleur	SRAM GX / Eagle 12 Speed
Number of Gears	12
Shifters	SRAM NX Eagle Trigger
Chain set	SRAM Stylo Eagle DUB Boost 32T
Bottom Bracket	SRAM DUB PF integrated / shell 41x92mm
Cassette	SRAM GX / XG1275 / 10-50 T
Chain	SRAM CN NX Eagle
Pedals	Not Supplied
Brakeset	Shimano MT500 Disc 180/F and 160/R mm SM-RT54 CL Rotor
Handlebars	Syncros FL2.0 T-Bar / Alloy 6061 T shape Flat / 9° / 720mm
Stem	Syncros FL2.0 6° / integrated Spacer & Top Cup 6061 Alloy / 31.8mm / 1 1/8"
Headset	Syncros Pro Drop in / Tapered 1.5" - 1 1/8" bearing diameter size 42mm and 52mm
Grips	Syncros Pro lock-on grips
Rims	Syncros X-25S / 32H / 25mm / Sleeve Joint Tubeless ready
Front Hub	Formula CL811 / 15x110mm
Rear Hub	Formula CL14811 / Boost 12x148mm / XD
Tyres	Maxxis Rekon Race / 2.25" / 60TPI Kevlar Bead TR Tubeless Ready / EXO
Saddle	Syncros XR2.0 / CROM rails
Seatpost	Syncros FL2.0 / 10mm offset 31.6 x 400mm
Weight	10.9 kg

The Foil from Scott is their top tier aero road bike. Scott has built an out and out aero race bike with some compliance that gives a more comfortable ride than some other aero road bikes on the market. If you are looking for a bike to go blisteringly fast on tarmac over a long distance then this should be on your short list. The HMF grade carbon frame and fork with ultra-efficient Shimano Ultegra groupset.

Key Features:

• Foil HMF Carbon fibre frame with road race geometry
• Full carbon fork gives a forgiving yet responsive ride
• Shimano 105 2x11 speed drivetrain offers precise shifting every time
• Syncros RR2.0 wheelset for fast and efficient rolling
• Sizes: 47, 49, 52, 54, 56, 58, 61cm
• Colours: Silver/Black

The Scott FOIL 20 has been designed to be even more aerodynamic, more comfortable, and to still have that incredibly laterally stiff nature of its predecessor. Featuring an HMF Carbon Fiber frame, and integrated Syncros components, the Scott FOIL 20 is a race ready machine at a fraction of the cost.

The Scott Addict 20 Road Bike is your go to bike for eating up the miles without breaking the bank.  With its geometry focused more on endurance, it’s got a sporty riding position with direct, precise handling that makes it ideal for long distance rides.

• Addict Disc HMF Carbon technology with endurance technology for an aggressive riding position and direct handling
• Wide ranging 22 speed Shimano 105 drivetrain offers precise, efficient and reliable shifting
• Shimano 105 brakes offer a responsive and powerful braking action with great modulation for better control
• Schwalbe Durano tyres are highly durable and offer excellent grip and are ideal for high mileage
• New for 2019 Syncros Tofino saddle

The Addict HMF carbon frame with endurance geometry keeps the weight to a minimum whilst also providing a comfortable riding position, enabling you to ride further and longer with ease.  The Shimano 105 drivetrain offers a wide range of gears to suit any riding conditions and provides smooth, crisp shifting.  Brakes also come in the form of Shimano 105, providing high quality braking power.  A Syncros RP2.0 wheelset that are strong, durable and fast rolling are further complemented with Schwalbe Durano tyres that provide high speed grip and control and fantastic durability for long distance riding.  To finish the Addict 20 in style Scott have furnished it with a host of high quality and lightweight Syncros components including the handlebar, stem, seatpost and saddle.

Frame	Addict HMF Carbon technology Endurance geometry / Replaceable Dropout
Fork	Addict HMF 1 1/8"-1 1/4" Carbon steerer Alloy Dropout
Headset	Syncros Integrated
Rear Derailleur	Shimano 105 Black RD-R7000-GS 22 Speed
Front Derailleur	Shimano 105 FD-R7000 Black
Shifters	Shimano 105 ST-R7000 Dual control 22 Speed
Brakes	Shimano 105 BR-R7000 Super SLR Dual pivot
Crankset	Shimano FC-R7000 Compact Hyperdrive 50x34 T Black
BB-Set	Shimano BB-RS500-PB
Handlebar	Syncros Creston 2.0 Compact Alloy 31.8mm
Stem	Syncros RR2.0 1 1/8" / four Bolt 31.8mm
Seatpost	Syncros Carbon RR1.2 27.2/350mm
Saddle	Syncros Tofino T-Channel 2.0
Wheelset	Syncros RP2.0 18 Front / 24 Rear
Chain	Shimano CN-HG601-11
Cassette	Shimano 105 CS-R7000 11 Speed 11-32
Tyres	Schwalbe Durano Fold 700x28C
Weight	7.96kg

The SCOTT Speedster has been completely redesigned for 2018. Lighter than it's predecessor, the Speedster 10 features a Shimano groupset and Syncros components. You'll be upping your velocity in no time!

Key Features

• 6061 Double Butted Alloy Frame
• Speedster Carbon Fork
• Shimano 105 22 Speed Drivetrain
• Tektro Caliper Brakes
• Syncros Race 22 Wheelset
• Schwalbe Lugano 700 x 28c Tyres
• FRAME: Scott Speedster / 6061 D.Butted alloy Endurance geometry / integrated headtube, int. cable routing
• FORK: Scott Speedster Carbon 1 1/8"-1 1/4" carbon steerer
• STEM: Syncros RR2.0 1 1/8" / four bolt 31.8mm
• HANDLEBAR: Syncros RR2.0 Comfort 31.8mm
• HEADSET: Integrated steel cup
• FRONT BRAKE: Tektro SCBR-525
• REAR BRAKE: Tektro SCBR-525
• FRONT DERAILLEUR: Shimano 105 black FD-5801
• REAR DERAILLEUR: Shimano 105 black RD-5800-GS 11-speed
• SHIFT LEVERS: Shimano 105 black ST-5800 Dual Control 11-speed
• CASSETTE: Shimano CS-5800 11-speed 11-32T
• CHAIN: KMC X11
• CRANKSET: Shimano FC-RS510 black Hyperdrive 50x34T
• PEDALS: N/A
• FRONT WHEEL: Syncros Race 22 - Formula Team hub 24h
• REAR WHEEL: Syncros Race 22 - Formula Team hub 28h
• FRONT TYRE: Schwalbe Lugano 700x28C
• REAR TYRE: Schwalbe Lugano 700x28C
• SADDLE: Syncros FL2.5
• SEATPOST: Syncros RR2.5 27.2/350mm
• WEIGHT: 8.85kg (approximately)

Looking to head off road? The all NEW Strike eRide 720 might just be what your looking for. Comfortable geometry and clever components combine to give you a solid choice for any outing. A 500Wh Bosch Drive unit gives you all day energy when you need it.

With performance geometry the new Scott Aspect is a great introduction to the world of mountain biking. Scott are at the forefront of cycling competition and this knowledge and passion is shown in the riding characteristics of every bike they make. The Aspect is perfect for a commute on less than perfect tarmac, leisure riding and adding some fun to your fitness routine.

Key Features:

• 6061 DB aluminium frame with performance geometry
• Suntour XCT30 fork with lockout gives 100mm of plush travel
• Shimano 3x8 drivetrain gives a wide gear range
• Tektro hydraulic disc brakes for powerful braking
• 5” wheels give a nimble and responsive feel
• Sizes: Extra Small, Small, Medium, Large, Extra Large
• Colour: Black/Bronze, Blue/Red
• The Scott Aspect 750/950 is a mountain hardtail that is designed to be light, efficient and reasonably priced. Featuring a lockout mechanism for the fork, Disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.

Frame:	Aspect 700/900 series Alloy 6061 DB / Performance geometry Internal cable routing
Fork:	Suntour XCT30-HLO Hyd. Lockout / 100mm travel
Headset:	Ritchey LOGIC ZERO-OE
Stem:	Syncros M3.0 / 7° / Black
Bars:	Syncros M3.0 / 720mm black / 31.8mm / 12mm rise / 9° BS
Front Brake:	Tektro HDM275 / Hydr. Disc 160F/160R Rotor
Rear Brake:	Tektro HDM275 / Hydr. Disc 160F/160R Rotor
Brake Lever:	Tektro HDM275
Front Mech:	Formula DC-19 FQR Disc
Rear Mech:	Formula DC-25 8s RQR Disc
Shifters:	Shimano SL-M310-8R R-fire plus
Speed:	24
Rims:	Syncros X-20 Disc 32H / black
Front Hub:	Formula DC-19 FQR Disc
Rear Hub:	Formula DC-25 8s RQR Disc
Spokes:	14 G / stainless / black
Front Tyre:	Kenda Slant 6 2.35" / 30TPI
Rear Tyre:	Kenda Slant 6 2.35" / 30TPI
Seat Post:	Syncros M3.0 27.2mm / 350mm / Black
Saddle:	Syncros M3.0
Chainset:	Shimano FC-TY701 40X34X24 w/CG
Bottom Bracket:	Shimano BB-UN-100 Cartridge Type
Chain:	KMC Z-7
Cassette:	Shimano CS-HG31-8 / 11-34T
Pedals:	VP VP-536
Weight:	Approx 14.40kg / 31.75lbs

The Genius has always been a bike designed to go up as well as it went down, and vice a versa. For 2019, we wanted to re-emphasize this point. We designed the Genius specifically in search of balance.

Compared to the previous iteration, this one is slacker, has longer reach, shorter chainstays and a steeper seat angle. We really wanted geometry figures that would balance out the long front end for more stable descending. What we've ended up with is a bike that climbs like a bat out of hell and gets you down the mountain faster than you can say "dropping!" After years of testing different options, these numbers are a result of taking everything we want out of a bike for the trails we ride, and building it.

Our suspension kinematic brings perfect balance and control to the platform. Using our Virtual Four Link design, we have honed our suspension feel, pedaling and braking response to work with maximum efficiency and in harmony with our TwinLoc Suspension System. Our kinematic suspension curve gives supple small bump sensitivity and therefore exceptional traction characteristics, perfect support in the mid-stroke and a controlled deep stroke for predictable and comfortable bottom outs. Specific pivot placements ensures efficient pedaling that drives the bike forwards like a startled greyhound and neutral braking that strikes a perfect balance between rider comfort and control, chassis stability and rear wheel traction. From the XC racer, to the downhill enthusiast, the kinematic brings improvements and advantages in all areas and gives a solid fundamental basis for a bike for all riders and all conditions.

We have adopted the new Metric shock sizing standards with a Trunnion mount. Since the shock body now extends between the two lower mounting bolts, our suspension partners have more design space. This means the shock has more stroke for the same eye to eye length. Stroke on the 165mm eye to eye shock has increased from 38mm to 40/45mm.The Trunnion standard also offers structural gains. The shorter shock enables us to build a very compact frame and shock package, which integrates tightly to the seat tube. We managed to have a very tiny yet stiff linkage-lighter than ever. Thanks to the Trunnion mount construction, stand over height on the new Spark is very low. We are still able to realize a super compact full suspension frame and provide the ability to mount both a small and big water bottle.

The Spark family maintains the 165mm eye-to-eye shock length of the previous Spark 900 (our shortest shock), but realises up to 7mm more shock stroke. All Spark RC and most Spark and Spark Plus bikes utilize the FOX Nude shock, specially made for SCOTT:

-165mm Metric Trunnion shock
-40mm (100mm travel RC Spark line-up) vs. 38mm (old Spark)
-45mm (120mm travel Spark line-up)

By turning the Trunnion shock upside-down, we can fully integrate it into the frame which results in several benefits.Since the Trunnion mount is the same width as the down tube and mainpivot, we can have a very clean frame design in this critical area. The lack of tight transitions and small details allows for an efficient, continuous carbon structure. Carbon material added to reinforce the shock mount also stiffens the connection between the down tube, main pivot and bottom bracket, a key stiffness path.

The flipped shock also lowers the frame’s center of gravity helping to give a more planted feel when riding. Unsprung mass is reduced since it is the lighter part of the shock, connected to the linkage, not the heavier body which must move during an impact – the suspension system can react faster.Our TwinLoc remote cable can be routed cleanly into the down tube.

Classic E-Bike systems use a speed sensor consisting of a magnet fixed onto a spoke of the rear wheel and the sensor itself normally located on the left chainstay. This sensor gives information to the drive unit regarding the speed which is crucial for assist management. That's why; we've developed a patented magnet mount to improve the system's integration and reliability. The magnet has been integrated into the lock ring of the Shimano rotor and the sensor is fixed in the left dropout. As a result the sensor and the magnet, compared with more traditional positioning, are now more integrated and protected from impact and dirt- both normal consequences of off road riding.

Direct integration into the lock ring
Scott patented solution
Improved assist management

Key Specifications

Frame - Alloy Frame / Virtual 4 link kinematic VLK
Fork - FOX 36 Rhythm Air Grip 3
Shock - FOX Float EVOL Performace Trunnion 3 modes
Drivetrain - FOX 36 Rhythm Air Grip 3
Brakes - Shimano BR-MT520 Disc 203mm F&R / SM-RT64 CL Rotor
Motor - Shimano STEPS E8000 250W
Battery - 500Wh Battery
Display - 500Wh Battery
Full Specification
Frame - Alloy Frame / Virtual 4 link kinematic VLK 27.5"" and 29"" compatible / geo adj. / Boost 148x12mm 150mm travel / Shimano E-8000 Integr. DT Battery Tapered Headtube E2, Central Kickstand Mount
Fork - FOX 36 Rhythm Air Grip 3 / 3-Modes / 15x110mm QR axle tapered steerer / Reb. Adj. / Lockout / 150mm travel
Shock - FOX Float EVOL Performace Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 150mm / 185x55mm
Number of Gears - 12 Speed
Shifters - SRAM NX Eagle Single Click
Chainset - Shimano STEPS FC-E8000 / 165mm / 34T
Chainrings - SRAM Eagle 34T / Alloy
Cassette - SRAM PG1230 / 11-50 T
Chain - SRAM NX Eagle
Front Derailleur - n/a
Rear Derailleur - SRAM NX Eagle / 12 Speed
Bottom Bracket - n/a
Pedals - None
Rims - Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
Front Hub - Shimano HB-MT400-B CL / 15x110mm
Rear Hub - Shimano FH-MT400-B CL / Boost 12x148mm
Front Tyre - Front: Schwalbe MagicMary Snake Skin / TL-Easy / Apex / Addix Soft Rear: Schwalbe Hans Dampf Snake Skin / TL-Easy / Apex / Addix Speedgrip 700 Series: 27.5x2.8"" / 900 Series: 29x2.6""
Rear Tyre - Front: Schwalbe MagicMary Snake Skin / TL-Easy / Apex / Addix Soft Rear: Schwalbe Hans Dampf Snake Skin / TL-Easy / Apex / Addix Speedgrip 700 Series: 27.5x2.8"" / 900 Series: 29x2.6""
Front Brake - Shimano BR-MT520 Disc 203mm F&R / SM-RT64 CL Rotor
Rear Brake - Shimano BR-MT520 Disc 203mm F&R / SM-RT64 CL Rotor
Brake Levers - Shimano BL-MT501
Handlebars - Syncros FL2.0 Steps mini Riser / Alloy 6061 12mm rise / 9° / 760mm Syncros Pro lock-on grips
Grips - n/a
Headset - Syncros FL2.0 Press Fit E2 / Tapered 1.5""-1 1/8"" OD 50/62mm / ID 44/56mm
Stem - Syncros FL2.0 / 6061 Alloy integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8""
Saddle - Syncros Tofino 2.0 / CRMO rails
Seatpost - Syncros Dropper 2.5 / Remote 31.6mm / S size 100mm / M, L & XL 125mm
Post Clamp - n/a
Weight - 23.80Kg

The all NEW SCOTT Addict 30 Disc was redesigned from the ground up with those longer days in mind. With new geometry that is less focused on racing and more on enduring, the Addict 30 Disc will be your go to when you're looking to put the miles in, but at a fraction of the cost.

Frame	Addict Disc MF Carbon technology Endurance geometry / Replaceable Dropout
Fork	Addict Disc MF 1 1/8" - 1 1/4" Carbon steerer#Alloy Dropout
Front Derailleur	Shimano Tiagra FD-4700
Rear Derailleur	Shimano Tiagra Black RD-4700-GS 20 Speed
Number of Gears	22
Shifters	Shimano Tiagra ST-RS405 Dual Control 20 Speed
Chain rings	Shimano Tiagra FC-4700 Compact Hyperdrive 50x34 T
Bottom Bracket	Shimano BB-RS500-PB
Cassette	Shimano CS-HG500 10 Speed 11-32
Chain	KMC X10
Pedals	Not Supplied
Brakeset	Shimano BR-RS405 Hyd Disc 160/F and 160/Rmm SM-RT64 CL Rotor
Handlebars	Syncros Creston 2.0 Compact Alloy 31.8mm
Stem	Syncros RR2.0 1 1/8" / four Bolt 31.8mm
Headset	Syncros Integrated
Wheelset	Syncros Race 24 Disc 28 Front / 28 Rear
Tyres	Schwalbe Durano Fold 700x32C
Saddle	Syncros FL2.0
Seatpost	Syncros Carbon RR1.2 27.2/350mm
Weight	9.05 kg

The Scott Foil RC Road Bike 2018 is a proven race machine, and with victories at the worlds biggest races, namely Milan San Remo, Liege Bastogne Liege and Paris-Roubaix, its speed and versatility are unquestionable.

Scott's HMX / IMP carbon fibre frame construction offers extremely high levels of stiffness, whilst the internally routed cabling and Syncros carbon seatpost take care of its aerodynamic properties. Paired with the HMX carbon fork, designed for direct, precise handling, you are provided with a light, stiff bike, compliant enough to secure a victory on the notorious Paris Roubaix cobbles.

Shimano's top-end Dura-Ace 11-speed mechanical groupset provides unrivalled performance, with crisp, reliable and efficient shifting all the way to the finish line. The 53x39T chainset and 11-30T cassette are in keeping with the bikes purpose, offering high maximum speed on the flat, whilst still providing sufficient range to conquer gruelling alpine climbs with ease.

The carbon Syncros components perform faultlessly, saving valuable weight and adding to the bikes overall comfort, whilst perfectly matching the frames colour-way for a very aesthetically pleasing end result. Zipp 30 Course wheels are paired with 25mm wide Continental Grand Prix 4000 S II tyres are the final piece to the puzzle, offering minimal weight, low rolling resistance and high levels of grip. This combination will see you cornering confidently at speeds you previously deemed unachievable.

FEATURES

• Shimano Dura-Ace 11-speed groupset provides the crisp, responsive shifting expected from Shimano's top end mechanical groupset
• Syncros carbon seatpost, integrated stem and carbon handlebar add additional aerodynamics
• Scott's HMX / IMP carbon frame provides unrivalled levels of stiffness, helping to secure key victories across the globe
• Zipp 30 Course wheelset and Continental Grand Prix 4000 S II tyres combine to offer confidence-inspiring grip and very low rolling resistance for maximum velocity
• FRAME: Scott FOIL HMX / IMP, F01 AERO carbon tech. Road race geometry, replaceable dropout
• STD seat-tube / internal BB
• FORK: Scott FOIL HMX 1 1/4" - 1 1/2" carbon steerer integrated carbon dropout
• STEM: Syncros integrated
• HANDLEBAR: Syncros Carbon FOIL Combo
• HEADSET: Syncros integrated
• FRONT BRAKE: Shimano Dura Ace BR-R9110 Super SLR dual pivot
• REAR BRAKE: Shimano Dura Ace BR-R9110 direct mount
• FRONT DERAILLEUR: Shimano Dura-Ace FD-R9100
• REAR DERAILLEUR: Shimano Dura-Ace RD-R9100 11-speed
• SHIFT LEVERS: Shimano Dura-Ace ST-R9100 dual control 11-speed
• CASSETTE: Shimano Dura-Ace CS-R9100 11-30T
• CHAIN: Shimano Dura-Ace CN-HG901-11
• CRANKSET: Shimano Dura-Ace FC-R9100 Hollowtech II 53x39T
• PEDALS: N/A
• FRONT WHEEL: Zipp 30 Course, Rim-brake clincher
• REAR WHEEL: Zipp 30 Course, Rim-brake clincher
• FRONT TYRE: Continental Grand Prix 4000 S II 700x25C
• REAR TYRE: Continental Grand Prix 4000 S II 700x25C
• SADDLE: Syncros RR1.0 carbon
• SEATPOST: Syncros FOIL aero carbon
• WEIGHT: 6.80kg (approximately)

This is an EX-Display model and may have some minor wear or marks on the body. Please contact us for specific details on this bike. Bargain price opportunity!

Ridden to World Triathlon Championship victory, the Plasma combines an intelligent geometry with supreme aerodynamics – this bike is fast! This model comes with a Shimano Ultegra groupset.

The SCOTT Plasma 10, with its Plasma 4 frame, has been designed with many similar features as the Plasma Team Issue. Having been upgraded from previous models, the Plasma 10 features next level adjustability, integration and an option to mount a storage box and comes in at an affordable price point.

Frame	Plasma 4 / IMP technology / HMF TT / TRI Geometry / Plasma HMX seatpost / Replaceable hanger / UCI approved
Fork	Plasma 4 1 1/8" Carbon / integrated
Front Derailleur	Shimano Ultegra FD-6800
Rear Derailleur	Shimano Ultegra RD-6800 11 Speed
Number of Gears	22
Shifters	Shimano Dura AceSL-BSR1 bar end
Chain set	Shimano Ultegra FC-6800 53/39T
Bottom Bracket	Shimano SM-BBR60
Cassette	Shimano Ultegra CS-6800 11-25T
Chain	Shimano CN-6800
Pedals	Not Supplied
Brakeset	Shimano Ultegra direct mount
Handlebars	Profile OZERO TT Profile T2+ Carbon J5
Stem	Profile 1/ZeroSeven 1 1/8"-31.8mm-7°
Headset	Syncros Integrated 45mm drop-in headset
Rims	Syncros Race 22 Aero Profile 24 Front / 28 Rear
Front Hub	Formula RB 25
Rear Hub	Formula RB 2611
Tyres	Continental Grand Sport Race 700x25C Fold
Saddle	Syncros RR2.0 TRI
Seatpost	Plasma HMX with Ritchey WCS clamp adjustable head
Weight	8.72 kg

Who is this bike for?
Riders who want front suspension to help absorb rough roads or woodland tracks.

Key Features

• 6061 Alloy Frame
• Suntour NEX-E25 Fork
• Shimano Acera 9 Speed Drivetrain
• Shimano BR-M315 Hydraulic Disc Brakes
• Schwalbe Smart Sam 700x47c Tyres

Hit the trails hard with the Scott Roxter 20 2019 Disc mountain bike. The lightweight alloy frame and fork will make it easy to handle when you're flying round your local bike tracks.

The Scott Roxter 20 2019 Disc is lightweight with the alloy frame and rigid fork, it also handles great with the Kenda 1080 tyres Scott have fitted it with and can stop fast with the Tektro SCM brakes. You will stand out from the crowd riding the Scott Roxer 20 with its yellow paint job and the great spec the bike comes with.

The spec includes a Shimano derailleur with SL-RS shifters, it also comes with junior flat-bar alloy 560mm handlebar and a kickstand to keep it upright for when your days cycling is done.

Key Specifications

• Frame - Roxter 20 PLUS Junior Alloy 6061
• Fork - AL-6061 rigid fork / disc
• Drivetrain - Prowheel A105PP 32T 127mm
• Brakes - Tektro SCM-02 Mech. Disc Brake / 160mm Rotor

Full Specification

• Frame - Roxter 20 PLUS Junior Alloy 6061
• Fork - AL-6061 rigid fork / disc
• Number of Gears - 7 Speed
• Shifters - Shimano SL-RS 36-7 Revo Shifter
• Chainset - Prowheel A105PP 32T 127mm
• Chainrings - 32T
• Cassette - SunRace MFM300 7-Speed / 13-34T
• Chain - KMC Z-51
• Rear Derailleur - Shimano RD-TY300 7 Speed
• Bottom Bracket - Femin FP-B906SCT
• Rims - Shining MP-32 Disc
• Front Hub - KT-122F / Nutted
• Rear Hub - KT-122R / Nutted
• Front Tyre - Kenda K1080 / 20x2.6"" / 30TPI
• Rear Tyre - Kenda K1080 / 20x2.6"" / 30TPI
• Front Brake - Tektro SCM-02 Mech. Disc Brake / 160mm Rotor
• Rear Brake - Tektro SCM-02 Mech. Disc Brake / 160mm Rotor
• Brake Levers - LEE CHI BL-81G
• Handlebars - Junior Flat-Bar / Alloy 560mm
• Headset - Femin FP-H807SCT
• Stem - LEADTEC LCS-7126 50mm / 25.4mm clamp
• Saddle - Syncros JR FL
• Seatpost - Alloy 26.8X-300mm
• Weight - 10.20Kg

The SCOTT Scale 16 is our truly functional bike for smaller riders who like a race inspired style.

Frame	JR14 Coaster, Alloy 6061, bended toptube, semi-integrated headtube, rigid fork
Frame Material	Alloy
Fork	Rigid Fork Alloy 6061, 16", V-Brake Pivot
Headset	Semi-integrated 1-1/8"
Bottom Bracket	BB68 threaded, square type

Crankset	Prowheel
Chainrings	28 tooth
Cassette	16 tooth

Brake Levers	Tektro Kids Lever
Front Brake	Tektro J-310 V-Brake
Rear Brake	Tektro J-310 V-Brake

Front Tyre	Kenda K905 K-RAD, 16x2.125"
Rear Tyre	Kenda K905 K-RAD, 16x2.125"
Front Hub	KT-122F, 20 hole, nutted
Rear Hub	KT-A13R, 20 hole, nutted
Rims	Alloy, black, 20 hole
Spokes	14 gauge, UCP, black

Handlebars	Junior Flat Bar, alloy, 500mm
Stem	Ahead, Alloy, 30mm, 25.4mm clamp
Saddle	Syncros JR16
Seat Post	Alloy, 26.8x200mm
Pedals	MARWI SP-201, 9/16" thread

Other Features

Kickstand, Syncros stem protector

Bike Colour	Black/Yellow
Model year	2019
Manufacturer Range	Scale 16

The Contessa active solution geometry offers the lowest stand-over height and the most upright and comfortable riding position of the Contessa line. Narrower Handlebars, suiting women's shoulder widths for better and increased control combined with a shorter stem for better handling. Syncros Womens saddles are developed and designed with a specific shape, curvature and padding based on women's anatomies and riding positions.

The SCOTT Contessa 740 is an affordable hardtail mountain bike with women's specific touch points. This bike is ideal for casual and novice riders, and features Tektro disc brakes.

Frame	Contessa 27.5" series Alloy 6061 / Performance geometry
Fork	Suntour XCE 100mm travel
Front Derailleur	Shimano FD-TY500-TS6 / 31.8mm
Rear Derailleur	Shimano Tourney RD-TY300 21 Speed
Number of Gears	21
Shifters	Shimano ST-EF 41 L / 7R EZ-fire plus
Chain set	Shimano FC-TY501 42x34x24 w/CG
Bottom Bracket	Feimin FP.B908N
Cassette	Sunrace CSM44 7AV / 11-34T
Chain	KMC Z-50
Pedals	Supplied
Brakeset	Tektro SCM-02 mech. Disc 160F/160R Rotor
Handlebars	HL MTB-AL-312BT / 640mm / black / 12mm rise
Stem	TDS-C302-8FOV / 10° / 31.8 / Black
Headset	Ritchey LOGIC ZERO-OE
Rims	Syncros X-20 Disc 32H / black
Front Hub	Formula DC-19 FQR disc
Rear Hub	Formula DC-25 RQR disc
Tyres	Kenda Slant 6 27.5 x 2.35" / 30TPI
Saddle	Syncros W 3.0
Seatpost	HL SP C212 27.2mm / 350mm / Black
Weight	14.5 kg

The Scott Sub Cross eRide 30's frame is ePowered by a 400wh Bosch battery. With this you can get to where you are going faster and more comfortably than ever before. Throw in wider rims and 47c Smart Sam tires and the result is one sleek speedy and well equipped bike.

E.Drive System

A fantastic aluminium framed road bike from Scott, the Speedster is ready for sportives, tarmac commuting and hitting your fitness goals. With a lightweight aluminium frame with a full carbon fibre fork the Speedster gives a more comfortable and slightly more upright riding position than a race bike.
With ever efficient and lightweight Shimano 105 2x11 groupset you will be riding confidently, comfortably and quick on the Speedster.

Key Features:

• 6061 Aluminium alloy frame with endurance geometry
• Full carbon fork gives a comfortable and agile feel
• Shimano 105 2x11 drivetrain for reliable shifting
• Weight: Approx 9.42kg / 20.77lbs
• Sizes: 47, 49, 52, 54, 56, 58, 61cm
• Colour: Bronze

The Scott Speedster is light, agile and cost efficient. The Speedster 10 features a Shimano groupset and Syncros components. You'll be upping your velocity in no time!

Frame:	Speedster / 6061 D.Butted Alloy Endurance geometry / Integrated Headtube, int. cable routing
Fork:	Speedster Carbon 1 1/8"-1 1/4" Carbon steerer
Headset:	Integrated Steel Cup
Stem:	Syncros RR2.0 1 1/8" / four Bolt 31.8mm
Bars:	Syncros RR2.0 Comfort 31.8mm
Front Brake:	Tektro SCBR-525 Catridge Pads
Rear Brake:	Tektro SCBR-525 Catridge Pads
Front Mech:	Shimano 105 Black FD-R7000
Rear Mech:	Shimano 105 Black RD-R7000-GS 22 Speed
Shifters:	Shimano 105 Black ST-R7000 Dual control 22 Speed
Speed:	22
Rims:	Syncros Race 23 24 Front / 28 Rear
Front Hub:	Formula Team 24 H
Rear Hub:	Formula Team 28 H
Spokes:	SHA-DAR Black 2mm
Front Tyre:	Schwalbe Lugano 700x28C
Rear Tyre:	Schwalbe Lugano 700x28C
Seat Post:	Syncros RR2.5 27.2/350mm
Saddle:	Syncros FL2.5
Chainset:	Shimano FC-RS510 Black Hyperdrive 50x34 T
Bottom Bracket:	Shimano BB-RS500-PB
Chain:	KMC X11
Cassette:	Shimano CS-R7000 11 Speed 11-32 T
Pedals:	Not Included
Weight:	Approx 9.42kg / 20.77lbs

The legend of the FOIL continues, and things are about to get even better. The Scott FOIL 30 has been designed to be even more aerodynamic, more comfortable, and to still have that incredibly laterally stiff nature of its predecessor. Featuring an HMF Carbon Fiber frame, and integrated Syncros components, the Scott FOIL 30 is a race ready machine at a fraction of the cost.

FRAME: FOIL HMF / IMP, F01 AERO Carbon tech. Road Race geometry Replaceable Dropout STD Seattube / INT BB

FORK: FOIL HMF 1 1/4" - 1 1/2" Carbon steerer Integrated Carbon Dropout

HEADSET: Syncros Integrated

REAR DERAILLEUR: Shimano 105 RD-5800 22 Speed

FRONT DERAILLEUR: Shimano 105 FD-5801

SHIFTERS: Shimano 105 ST-5800 Dual control 22 Speed

BRAKES: Shimano 105 BR-5810 / 5810 rear Super SLR Dual pivot / Direct mount

CRANKSET: Shimano 105 FC-5800 Compact Hyperdrive 52x36 T

BB-SET: Shimano BB-RS500-PB

HANDLEBAR: Syncros Creston 1.5 Compact 31.8mm

H'STEM: Syncros FOIL 1 1/4"

SEATPOST: Syncros FOIL aero Carbon

SEAT: Syncros RR2.0

WHEELSET: Syncros RR2.0 18 Front / 24 Rear

CHAIN: Shimano CN-HG601-11

CASSETTE: Shimano 105 CS-5800 11-28

TIRES: Continental Grand Sport Race Fold 700x25C

APPROX WEIGHT: 7.80kg / 17.20lbs

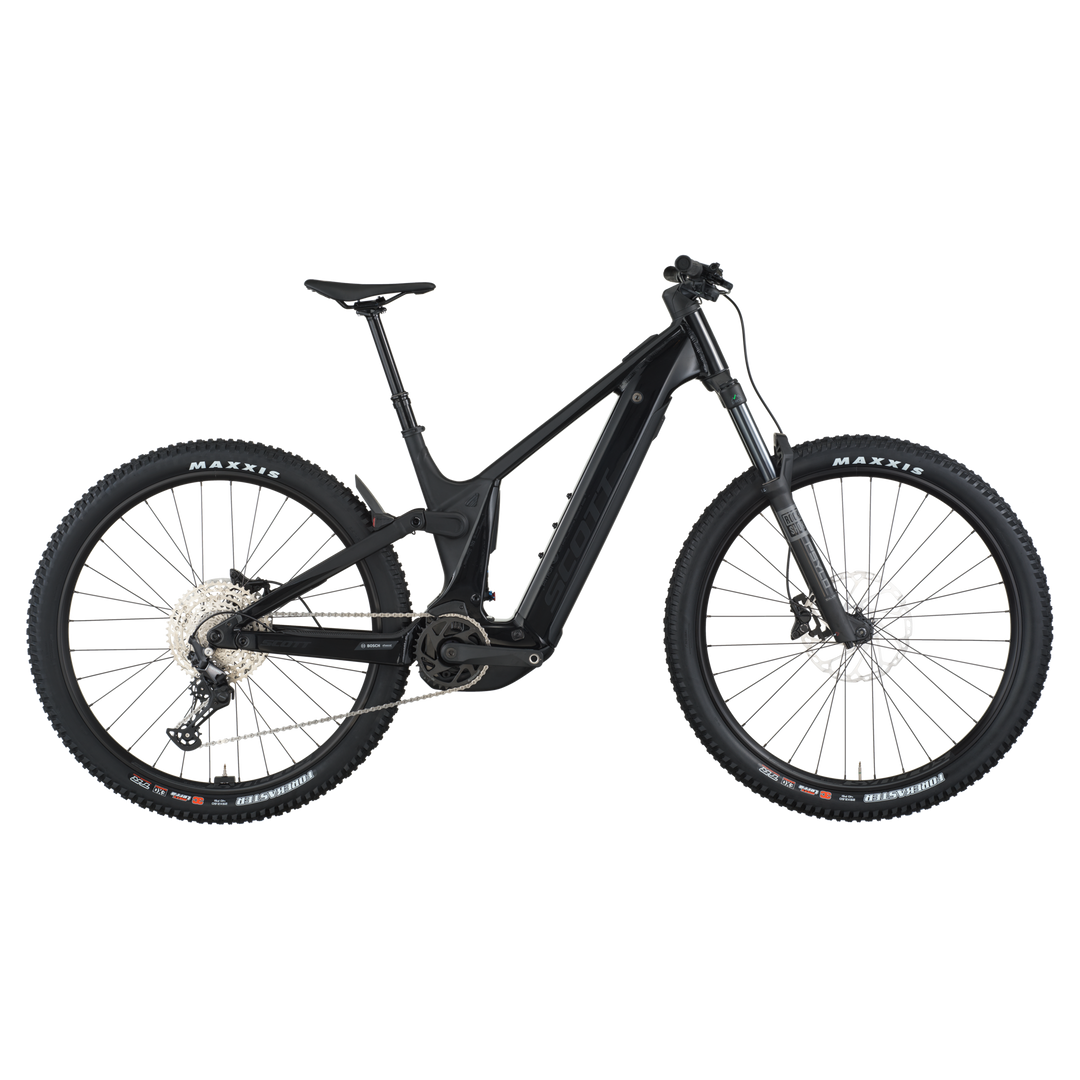

Looking to head off road? The all NEW Strike eRide 930 might just be what you're looking for. Comfortable geometry and clever components combine to give you a solid choice for any outing. A 500Wh Bosch Drive unit gives you all day energy when you need it.

FRAME	Alloy Frame / Virtual 4 link kinematic VLK 27.5 and 29 compatible / geo adj. / Boost 148x12mm 140mm travel / Bosch Performance CX / Integr. DT Battery Tapered Headtube E2, Central Kickstand Mount
FORK	RockShox Recon RL Solo Air 15x110mm QR axle / Tapered Steerer Reb. Adj. / 2 Modes / Lockout / 140mm travel / E-Bike
REAR SHOCK	X-Fusion NUDE Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Reb. Adj. Travel 140-90-Lockout / 185x50mm
HEADSET	Syncros OE Press Fit E2 / Tapered 1.5-1 1/8 OD 50/62mm / ID 44/56mm
REAR DERAILLEUR	SRAM NX Eagle / 12 Speed
SHIFTERS	SRAM NX Eagle Single Click
HANDLEBAR	Syncros Hixon 2.0 Rise / Alloy 6061D.B. 20mm rise / 8 / 760mm Syncros Comfort lock-on grips
H STEM	Syncros FL2.0 / 6061 Alloy 6 / integrated Top Cup / 31.8mm / 1 1/8
SEAT	Syncros ER2.0
SEATPOST	Syncros Dropper 2.5 / Remote 31.6mm / S size 100mm / M, L & XL 125mm
HUB FRONT	Shimano HB-MT400-B CL / 15x110mm
HUB REAR	Shimano FH-MT400-B CL / Boost 12x148mm
CHAIN	SRAM NX Eagle
CASSETTE	SRAM PG1230 / 11-50 T
RIMS	Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
STEM	Syncros FL2.0 / 6061 Alloy 6 / integrated Top Cup / 31.8mm / 1 1/8
REAR BRAKE	Shimano BR-MT520 Disc 203mm F&R / SM-RT64 CL Rotor
FRONT BRAKE	Shimano BR-MT520 Disc 203mm F&R / SM-RT64 CL Rotor
BRAKE ROTOR	Shimano BL-MT501
CHAINSET	FSA 170mm / 16T
TYRES	Front&Rear: Maxxis Rekon / 60TPI Kevlar Bead EXO / TR Tubeless ready Dual / 700 Series: 27.5x2.8 / 900 Series: 29x2.6
MOTOR	Bosch Performance CX 250W System w/integr. 500Wh PowerTube Battery / Purion Display / 4A Charger EU: 25kmh / US: 20mph
CATEGORY	Electric Bikes
CONDITION	Brand new
AVAILABILITY	In stock
	Available now
BIKE YEAR	2019
SKU	270130

The SCOTT Aspect 950 is a mountain hardtail that is designed to be light, efficient and reasonably priced. Featuring a lockout mechanism for the fork, disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.

Frame	Aspect 700/900 series Alloy 6061 DB / Performance geometry Internal cable routing
Fork	Suntour XCT30-HLO Hyd. Lockout / 100mm travel
Headset	Ritchey LOGIC ZERO-OE
Rear Derailleur	Shimano Altus RD-M2000 24 Speed
Front Derailleur	Shimano FD-TY700-TS6 / 31.8mm
Shifters	Shimano SL-M310-8R R-fire plus
Brake Levers	Tektro HDM275
Brakes	Tektro HDM275 / Hydr. Disc 160F/160R Rotor
Crankset	Shimano FC-TY701 42X34X24 w/CG
Bb-Set	Shimano BB-UN-100 Cartridge Type
Handlebar	Syncros M3.0 / 720mm black / 31.8mm / 12mm rise / 9° BS
H'stem	Syncros M3.0 / 7° / Black
Pedals	VP VP-536
Seatpost	Syncros M3.0 27.2mm / 350mm / Black
Seat	Syncros M3.0
Hub (Front)	Formula DC-19 FQR disc
Hub (Rear)	Formula DC-25 8s RQR disc
Chain	KMC Z-7
Cassette	Shimano CS-HG31-8 / 11-34T
Spokes	14 G / stainless / black
Rims	Syncros X-20 Disc 32H / black
Tyres	Kenda Slant 6 2.35" / 30TPI
Approx Weights In Kg	14.5

With performance geometry the new Scott Aspect is a great introduction to the world of mountain biking. Scott are at the forefront of cycling competition and this knowledge and passion is shown in the riding characteristics of every bike they make. The Aspect is perfect for a commute on less than perfect tarmac, leisure riding and adding some fun to your fitness routine.

Key Features:

• 6061 aluminium frame with performance geometry
• Suntour XCE fork gives 100mm of plush travel
• Shimano 3x7 drivetrain gives a wide gear range
• Tektro hydraulic disc brakes for powerful braking

The Scott Aspect 760 is a mountain hardtail that is designed to be light, efficient and reasonably priced. Featuring Disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.

Frame:	Aspect 700/900 series Alloy 6061 / Performance geometry
Fork:	Suntour XCE 100mm travel
Headset:	Ritchey LOGIC ZERO-OE
Stem:	TDS-C302-8FOV / 10° / 31.8 / Black
Bars:	HL MTB-AL-312BT / 720mm / black / 12mm rise
Front Brake:	Tektro HDM275 / Hydr. Disc 160F/160R Rotor
Rear Brake:	Tektro HDM275 / Hydr. Disc 160F/160R Rotor
Brake Lever:	Tektro HDM275
Front Mech:	Formula DC-19 FQR Disc
Rear Mech:	Formula DC-25 7s RQR Disc
Shifters:	Shimano SL-M310-7R R-fire plus
Speed:	21
Rims:	Syncros X-20 Disc 32H / black
Front Hub:	Formula DC-19 FQR Disc
Rear Hub:	Formula DC-25 7s RQR Disc
Spokes:	14 G / stainless / black
Front Tyre:	Kenda Slant 6 2.35" / 30TPI
Rear Tyre:	Kenda Slant 6 2.35" / 30TPI
Seat Post:	HL SP C212 27.2mm / 350mm / Black
Saddle:	Syncros M3.0
Chainset:	Shimano FC-TY501 42x34x24 w/CG
Bottom Bracket:	Feimin FP.B908N
Chain:	KMC Z-50
Cassette:	Sunrace CSM44 7AV / 11-34T
Pedals:	VP VP-536
Weight:	Approx 14.60kg / 32.19lbs

Scott's Aspect eRide offers the assistance of a Bosch Performance CX motor in an integrated, comfortable, off-road package.

The Aspect eRide frame is constructed of 6061 Alloy, rugged enough to take on the tribulations of the trail whilst being light enough and stiff enough to pick up the pace on road. The eBike components have been seamlessly integrated within the lightweight frame to the point that you can barely tell the Aspect is an eBike. The PowerTube battery has been neatly integrated into the downtube, whilst the motor has been slotted in at bottom bracket level. This not only improves the aesthetics of the machine, but also lowers the centre of gravity thus increasing stability. The tapered headtube offers very responsive steering, whilst the RockShox suspension forks with 120mm travel ensures you stay firmly in control.

SRAM's NX1 is engineereed for simplicity and durability. Offering quick and accurate shifting, the NX1 provides 11 speed options with a solid 11-42 ratio to give you the means to go where you want. Saving weight, less to go wrong, less wear and tear on the chain and less chance of the chain bouncing off is just a handful of the pro's of a 1x system, as well as generally costing less.

The Bosch Performance CX motor is Bosch's top of the line motor, made for ambitious and demanding eBikers. The eMTB mode is designed for when you're attacking the trail and ensures you always get the support you need, perfectly and naturally delivered. There is no need to faff around with changing support modes either as the Performance Line CX adapts to your riding style.

Go further with the Aspect eRide.

Key Specifications

Frame - Aspect eRide / 6061 Alloy
Fork - RockShox Judy Silver RL Solo Air / 15x110mm QR axle / Tapered Steerer / Reb. Adj. / Remote Lockout / 120mm travel
Drivetrain - SRAM NX1 / 11 Speed
Brakes - Shimano BR-MT200 Disc / 180mm / SM-RT10 CL Rotor
Motor - Bosch Performance CX 250W System
Battery - 500Wh PowerTube Battery
Display - Purion Display
Full Specification
Frame - Aspect eRide / 6061 Alloy / Tapered Headtube E2 / custom butted tubing / internal cable routing / Bosch Performance CX / integr. DT Battery / Boost 148x12mm
Fork - RockShox Judy Silver RL Solo Air / 15x110mm QR axle / Tapered Steerer / Reb. Adj. / Remote Lockout / 120mm travel
Number of Gears - 11
Shifters - SRAM NX1 Trigger
Chainset - FSA CK-310 / 170mm
Chainrings - 15T
Cassette - SRAM PG1130 / 11-42 T
Chain - SRAM PC1110
Front Derailleur - N/A
Rear Derailleur - SRAM NX1 / 11 Speed
Pedals - N/A
Rims - Syncros X-30S / 32H / 30mm / Sleeve Joint / Tubeless ready
Front Hub - Shimano HB-MT400-B CL / 15x110mm
Rear Hub - Shimano FH-MT400-B CL / Boost 12x148mm
Front Tyre - Kenda SlantSix / 30TPI / 900 Series: 29x2.35" / 700 Series: 27.5x2.35"
Rear Tyre - Kenda SlantSix / 30TPI / 900 Series: 29x2.35" / 700 Series: 27.5x2.35"
Front Brake - Shimano BR-MT200 Disc / 180mm / SM-RT10 CL Rotor
Rear Brake - Shimano BR-MT200 Disc / 180mm / SM-RT10 CL Rotor
Handlebars - Syncros M3.0 720mm / 31.8mm / 9° / 12mm rise
Grips - Syncros Comfort lock-on grips
Headset - Syncros OE / Tapered 1.5"-1 1/8" / semi integ. OD 50/62mm / ID 44/56mm
Stem - Syncros M3.0 / 7° / Black
Saddle - Syncros M3.0
Seatpost - Syncros M3.0 / 31.6mm

With performance geometry the new Scott Aspect is a great introduction to the world of mountain biking. Scott are at the forefront of cycling competition and this knowledge and passion is shown in the riding characteristics of every bike they make. The Aspect is perfect for a commute on less than perfect tarmac, leisure riding and adding some fun to your fitness routine.

Key Features:

• 6061 aluminium frame with performance geometry
• Suntour XCE fork gives 100mm of plush travel
• Shimano 3x7 drivetrain gives a wide gear range
• Tektro hydraulic disc brakes for powerful braking

The Scott Aspect 760 is a mountain hardtail that is designed to be light, efficient and reasonably priced. Featuring Disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.

Frame:	Aspect 700/900 series Alloy 6061 / Performance geometry
Fork:	Suntour XCE 100mm travel
Headset:	Ritchey LOGIC ZERO-OE
Stem:	TDS-C302-8FOV / 10° / 31.8 / Black
Bars:	HL MTB-AL-312BT / 720mm / black / 12mm rise
Front Brake:	Tektro HDM275 / Hydr. Disc 160F/160R Rotor
Rear Brake:	Tektro HDM275 / Hydr. Disc 160F/160R Rotor
Brake Lever:	Tektro HDM275
Front Mech:	Formula DC-19 FQR Disc
Rear Mech:	Formula DC-25 7s RQR Disc
Shifters:	Shimano SL-M310-7R R-fire plus
Speed:	21
Rims:	Syncros X-20 Disc 32H / black
Front Hub:	Formula DC-19 FQR Disc
Rear Hub:	Formula DC-25 7s RQR Disc
Spokes:	14 G / stainless / black
Front Tyre:	Kenda Slant 6 2.35" / 30TPI
Rear Tyre:	Kenda Slant 6 2.35" / 30TPI
Seat Post:	HL SP C212 27.2mm / 350mm / Black
Saddle:	Syncros M3.0
Chainset:	Shimano FC-TY501 42x34x24 w/CG
Bottom Bracket:	Feimin FP.B908N
Chain:	KMC Z-50
Cassette:	Sunrace CSM44 7AV / 11-34T
Pedals:	VP VP-536
Weight:	Approx 14.60kg / 32.19lbs

With performance geometry the new Scott Aspect is a great introduction to the world of mountain biking. Scott are at the forefront of cycling competition and this knowledge and passion is shown in the riding characteristics of every bike they make. The Aspect is perfect for a commute on less than perfect tarmac, leisure riding and adding some fun to your fitness routine.

Key Features:

• 6061 aluminium frame with performance geometry
• Suntour XCE fork gives 100mm of plush travel
• Shimano 3x7 drivetrain gives a wide gear range
• Mechanical disc brakes give all-weather performance

The Scott Aspect 770/970 is a mountain hardtail that is designed to be light, efficient and reasonably priced. Featuring Disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.

Frame:	Aspect 700/900 series Alloy 6061 / Performance geometry
Fork:	Suntour XCE 100mm travel
Headset:	Ritchey LOGIC ZERO-OE
Stem:	TDS-C302-8FOV / 10° / 31.8 / Black
Bars:	HL MTB-AL-312BT / 720mm / black / 12mm rise
Front Brake:	Tektro SCM-02 mech. Disc 160F/160R Rotor
Rear Brake:	Tektro SCM-02 mech. Disc 160F/160R Rotor
Front Mech:	Shimano FD-TY500-TS6 / 31.8mm
Rear Mech:	Shimano Tourney RD-TY300 21 Speed
Shifters:	Shimano ST-EF 41 L / 7R EZ-fire plus
Speed:	21
Rims:	Syncros X-20 Disc 32H / black
Front Hub:	Formula DC-19 FQR Disc
Rear Hub:	Formula DC-25 7s RQR Disc
Spokes:	14 G / stainless / black
Front Tyre:	Kenda Slant 6 2.35" / 30TPI
Rear Tyre:	Kenda Slant 6 2.35" / 30TPI
Seat Post:	HL SP C212 27.2mm / 350mm / Black
Saddle:	Syncros M3.0
Chainset:	Shimano FC-TY501 42x34x24 w/CG
Bottom Bracket:	Feimin FP.B908N
Chain:	KMC Z-50
Cassette:	Sunrace CSM44 7AV / 11-34T
Pedals:	VP VP-536
Weight:	Approx 14.75kg / 32.52lbs

With performance geometry the new Scott Aspect is a great introduction to the world of mountain biking. Scott are at the forefront of cycling competition and this knowledge and passion is shown in the riding characteristics of every bike they make. The Aspect is perfect for a commute on less than perfect tarmac, leisure riding and adding some fun to your fitness routine.

Key Features:

• 6061 aluminium frame with performance geometry
• Suntour XCE fork gives 100mm of plush travel
• Shimano 3x7 drivetrain gives a wide gear range
• Mechanical disc brakes give all-weather performance

The Scott Aspect 770/970 is a mountain hardtail that is designed to be light, efficient and reasonably priced. Featuring Disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.

Frame:	Aspect 700/900 series Alloy 6061 / Performance geometry
Fork:	Suntour XCE 100mm travel
Headset:	Ritchey LOGIC ZERO-OE
Stem:	TDS-C302-8FOV / 10° / 31.8 / Black
Bars:	HL MTB-AL-312BT / 720mm / black / 12mm rise
Front Brake:	Tektro SCM-02 mech. Disc 160F/160R Rotor
Rear Brake:	Tektro SCM-02 mech. Disc 160F/160R Rotor
Front Mech:	Shimano FD-TY500-TS6 / 31.8mm
Rear Mech:	Shimano Tourney RD-TY300 21 Speed
Shifters:	Shimano ST-EF 41 L / 7R EZ-fire plus
Speed:	21
Rims:	Syncros X-20 Disc 32H / black
Front Hub:	Formula DC-19 FQR Disc
Rear Hub:	Formula DC-25 7s RQR Disc
Spokes:	14 G / stainless / black
Front Tyre:	Kenda Slant 6 2.35" / 30TPI
Rear Tyre:	Kenda Slant 6 2.35" / 30TPI
Seat Post:	HL SP C212 27.2mm / 350mm / Black
Saddle:	Syncros M3.0
Chainset:	Shimano FC-TY501 42x34x24 w/CG
Bottom Bracket:	Feimin FP.B908N
Chain:	KMC Z-50
Cassette:	Sunrace CSM44 7AV / 11-34T
Pedals:	VP VP-536
Weight:	Approx 14.75kg / 32.52lbs
