Name: Thok TK01 Grey Red 2023 Electric Mountain Bike
Brand: Thok E-Bikes
SKU: TK0120D-L
Price: 4499.0 GBP
Availability: InStock

Thok TK01 Grey Red 2023 Electric Mountain Bike

£5,990.00 £4,499.00 Save 25%

Tax included. Shipping calculated at checkout.

Size

LARGE

Quantity

Size chart

Here you will find the best approximate information on optimal sizing that we can offer. Sizing varies by the manufacturer, type of bike, and other variants but this rough guide should give you a match. Sizing can also be individually subjective so If you have any more specific requirements regarding this information, we highly recommend calling our expert staff on 01268 695877, coming into the shop or speaking to us via Chat/Message!

We also recommend researching the manufacturer of the bike you are interested in directly - many manufacturer websites now offer a dedicated fit/size guide where you can enter your measurements. We hope to offer this service on our website by late 2023.

Scott Bikes Size Chart (click here/see below)

General E-Bikes (Men & Women)

Your Height	Inside Leg	Road E-bikes	Mountain E-bikes	Hybrid/City/Trek E-bikes
147cm-152cm / 4'10"-5'0"	66cm / 26"	47, 48cm (Extra Small)	13” (Extra Small)	13”, 14" (Extra Small)
152cm-160cm / 5'0"-5'3"	69cm / 27"	49, 50cm (Extra Small)	13”, 14” (Extra Small)	14”, 15” (Extra Small or Small)
160cm-170cm / 5'3"-5'7"	71cm / 28"	51, 52, 53cm (Small)	15”, 16" (Small)	15”, 16" (Extra Small or Small or Medium)
170cm-175cm / 5'7"-5'9"	76cm / 30"	54, 55cm (Medium)	17", 18” (Medium)	17", 18” (Small or Medium)
175cm-180cm / 5'9"-5'11"	79cm / 31"	56, 57, 58cm (Medium or Large)	18”, 19" (Medium or Large)	19”, 20" (Medium or Large)
180cm-188cm / 5'11"-6'2"	81cm / 32"	59, 60cm (Large or Extra Large)	19", 20” (Large or Extra Large)	20", 21” (Large or Extra Large)
188cm-196cm / 6'2"-6'5"	86cm / 34"	60, 61, 62cm (Extra Large)	20", 21”, 22” (Large or Extra Large)	21”, 22” (Large or Extra Large)
196cm+ / 6' 5"+	91cm / 36"	62, 63cm (Extra Large or bigger)	23", 24” (Extra Large or bigger)	23", 24” (Extra Large or bigger)

General Bikes (Men)

Your Height	Inside leg	Road Bikes	Mountain Bikes	Hybrid/City Bikes
147cm-152cm / 4'10"-5'0"	66cm / 26"	47, 48cm (Extra Small)	13” (Extra Small)	13”, 14" (Extra Small)
152cm-160cm / 5'0"-5'3"	69cm / 27"	49, 50cm (Extra Small)	13”, 14” (Extra Small)	14”, 15” (Extra Small or Small)
160cm-170cm / 5'3"-5'7"	71cm / 28"	51, 52, 53cm (Small or Medium)	15”, 16" (Small or Medium)	15”, 16" (Small)
170cm-175cm / 5'7"-5'9"	76cm / 30"	54, 55cm (Medium)	17", 18” (Medium)	17", 18” (Medium)
175cm-180cm / 5'9"-5'11"	79cm / 31"	56, 57, 58cm (Medium or Large	18”, 19" (Medium or Large)	19”, 20" (Medium or Large)
180cm-188cm / 5'11"-6'2"	81cm / 32"	59, 60cm (Large or Extra Large)	19", 20” (Large or Extra Large)	20", 21” (Large or Extra Large)
188cm-196cm / 6'2"-6'5"	86cm / 34"	60, 61, 62cm (Large or Extra Large)	20", 21”, 22” Large or Extra Large)	21”, 22” (Large or Extra Large)
196cm+ / 6' 5"+	91cm / 36"	62, 63cm (Extra Large or bigger)	23", 24” (Extra Large or bigger)	23", 24” (Extra Large or bigger)

General Bikes (Women)

Your Height	Inside leg	Women's Road Bikes	Women's Mountain Bikes	Women's Hybrid/City Bikes
147cm-155cm / 4'10"-5'1"	66cm / 26"	44, 45, 46cm (Extra Small or smaller)	13”, 14" (Extra Small or smaller)	13”, 14" (Extra Small or smaller)
155cm-160cm / 5'1"-5'3"	69cm / 27"	47, 48, 49cm (Extra Small or Small)	13”, 14” ( Extra Small or Small)	14”, 15” (Extra Small or Small)
160cm-165cm / 5'3"-5'5"	71cm / 28"	50, 51, 52cm (Small)	15”, 16" (Small)	15”, 16" (Small)
165cm-172cm / 5'5"-5'8"	76cm / 30"	53, 54, 55cm (Medium)	17", 18” (Medium)	17", 18” (Medium)
172cm+ / 5'8"+	79cm / 31"	56, 57cm (Large)	19" (Large)	19" (Large)

General Bikes (Kids)

Approx. age	Min. inside leg	Wheel size
1-2 years	24cm / 9"	10"
2-3 years	31cm / 12"	12"
3-4 years	38-43cm / 15-17"	14"
4-5 years	48cm / 19"	16"
5-7 years	52-58cm / 20-23"	20"
8-12 years	62-67cm / 24-26"	24"
10-14 years	69-78cm / 27-31"	26"

FREE Premium Delivery Over £1000

30 Day No-Hassle Returns, Full Manufacturer Warranty

FREE Bike Build and/or Minimal Assembly

Les's Cycles - Open Since 1976!

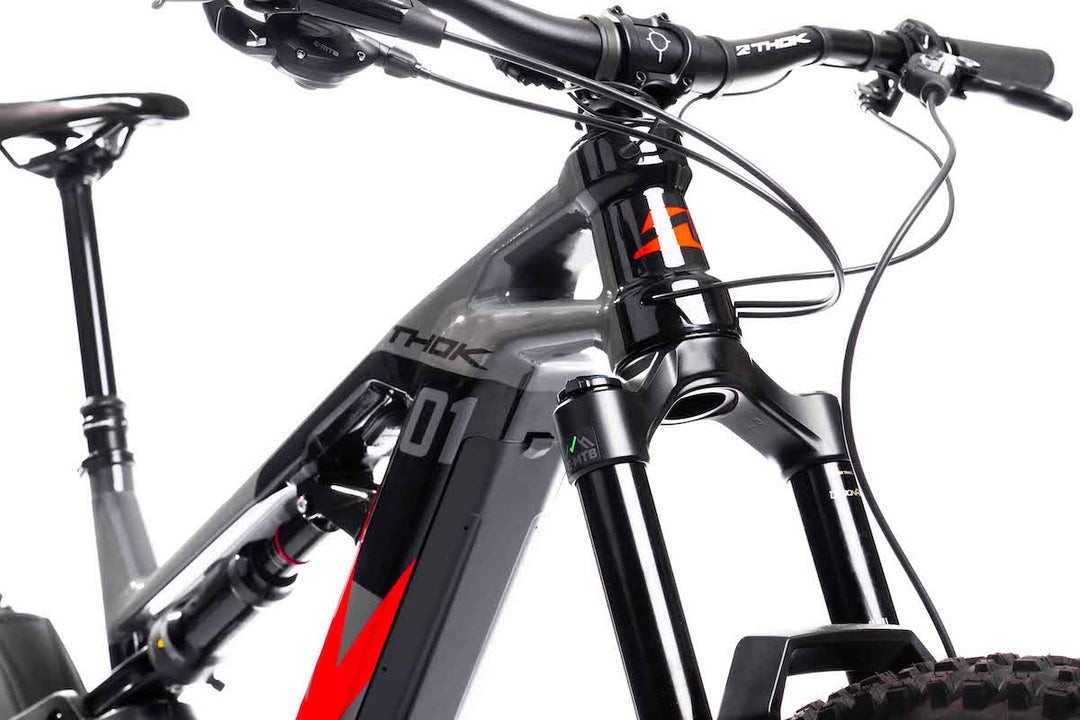

PFE “PRECISE FRONT END”

The new alloy hydroformed “Viper Head” top-tube, projected for the innovative tapered head-tube 1.8, and the rear connection to the verticalized down-tube, revolutionize the steering-area concept. Supreme stiffness and riding accuracy at the forefront with ebike-leading technologies.

LOWERED STANDOVER

Improved frame stiffness, increased handling, and easier saddle's height regulation.

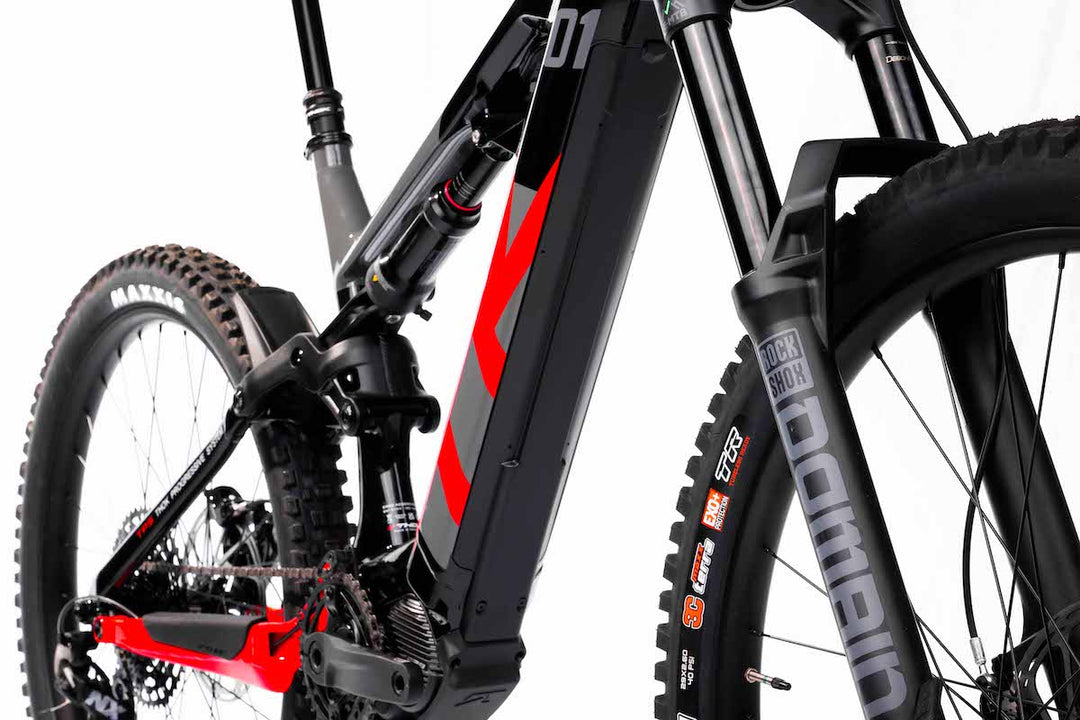

THOK DT INTEGRATED BATTERY

The special design of the down tube and its vertical position integrate the new 630 Wh battery, allowing to place it close to the engine, in order to ensure a low center of gravity - a highlight of THOK E-Bikes' philosophy. This means longer rides uphill with the same fun on downhill trails. Rideability, handling, and reactivity to stay true to the claim “Performance First”.

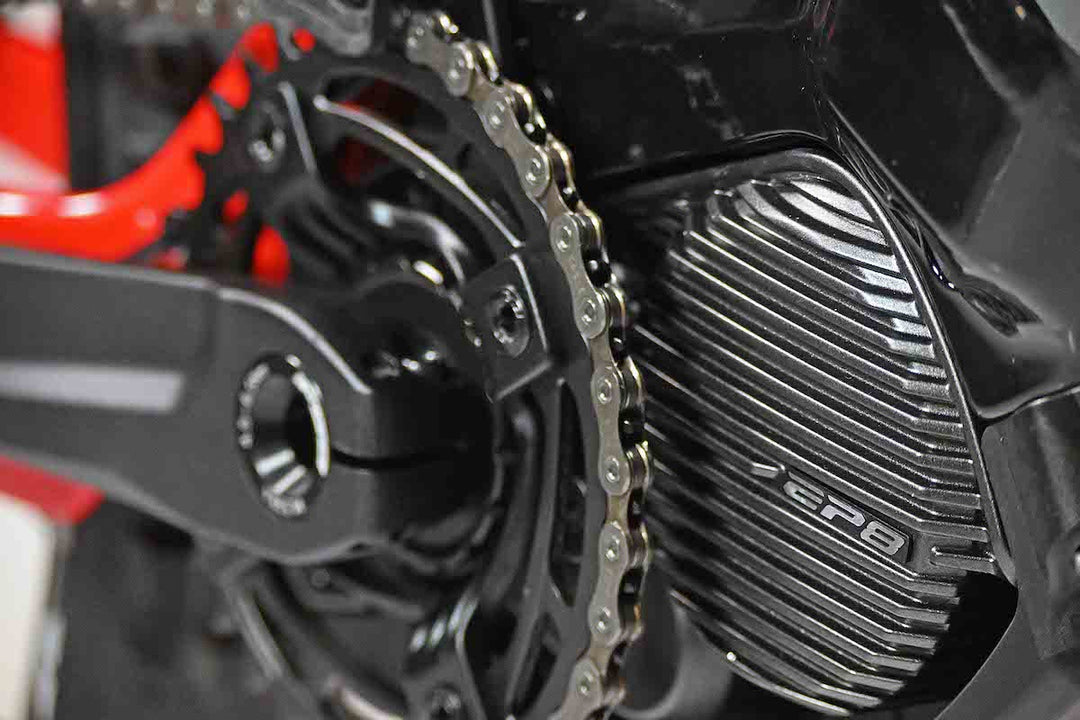

SHIMANO EP8 ENGINE

EP8 is the revolutionary second generation engine produced by Shimano. With its 2.6 kg weight it is, to date, one of the lightest drive units available on the market and, thanks to the increase of the maximum torque to 85 Nm and the reduction of friction by 36%, it ensures great riding power. pedaling with fluid, direct and natural delivery, guaranteeing complete control of the bike. Combined with the E-Tube Project app, it is fully customizable to best adapt to each trail and to the user's needs.

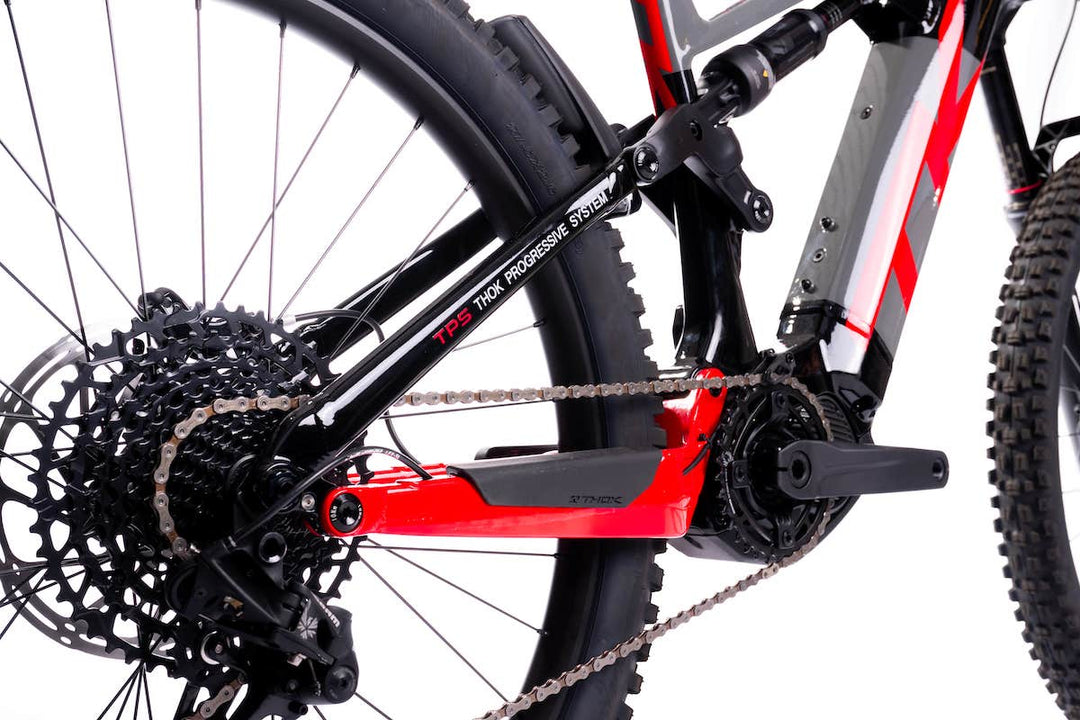

TPS “THOK PROGRESSIVE SYSTEM” OVERSIZE

THOK's successfull rear Progressive System, designed for e-MTB, uses a metric rear shock and a dedicated rocker. The progressive suspension, together with the oversize chainstays, ensure rigidity, better handling, and perfect traction on all types of terrain.

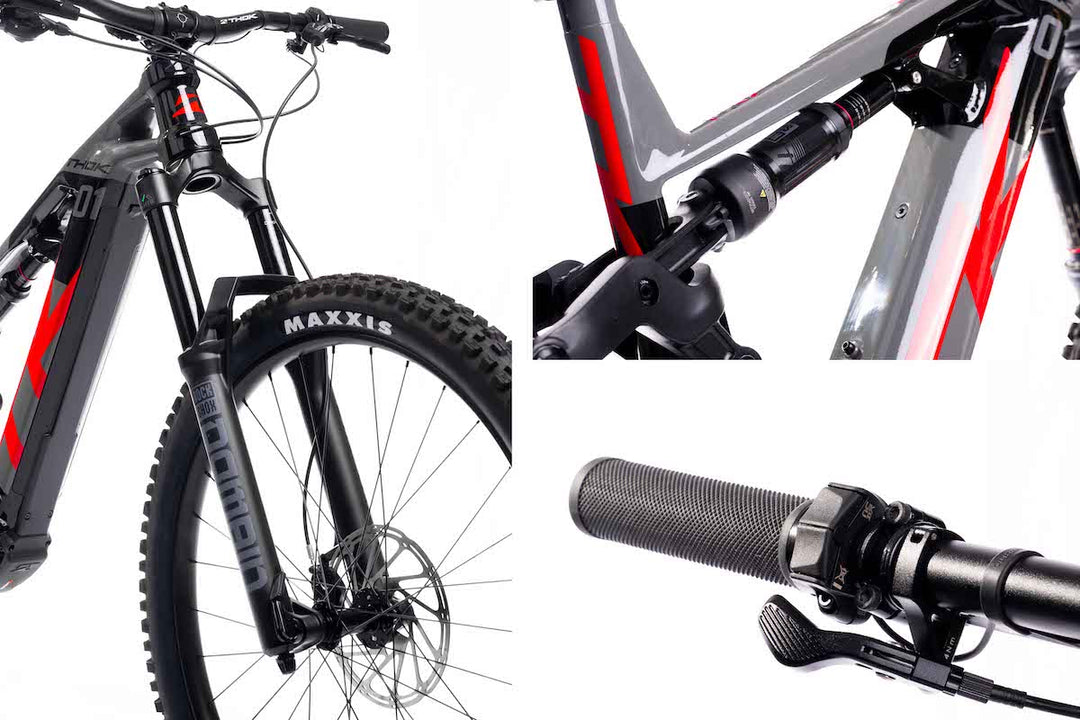

E-ENDURO READY

Equipped with the latest generation components, the TK01 is the uncompromising e-enduro.. Fork: Rock Shox Domain 170mm, Shock absorber: Rock Shox Deluxe R 170mm, Brakes: SRAM GUIDE T with 4 pistons, New SHIMANO "concave" switch unit for assist

"The TK01 extends your rides and allows you to enjoy even the most extreme trails while having fun in safety."

Designed around the unprecedented "THOK CONTROL GEOMETRY”, the TK01 is the e-MTB for the most demanding bikers. The new “PRECISE FRONT END”, created for the innovative tapered head tube 1.8, and the new generations of front fork with 180mm travel, mark an epochal change in the conception of e-MTB's steering.
The integrated 630Wh battery, located close to the engine to assure a low center of gravity, together with the mullet wheels, guarantee fun without time limits, respecting the Thok claim: ”Performance First”.

170 mm travel, mullet wheels, 4-piston brakes, integrated 630 Wh battery, Shimano EP8 motor.

The “Precise Front End” for head tube tapered 1.8 marks an epochal change in the steering area of E-MTBs.

A "steamroller" without compromising agility! With 29" and 27.5" mullet wheels, it is the ideal companion for fans of adrenalinic activities and strong sensations that E-Enduro can give.

SPEC

Frame	Alloy frame 6061 T4 T6 with 170mm rear travel, forged and CNC parts, hydroformed tubes, headtube tapered 1.8 and integrated battery.
Sizes	S - M - L - XL
Power supply	SHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery
Display and shifter	Cyclo Computer SC-E7000 with 1,39" screen - ergonomic remote SW-E7000 (Eco, Trail, Boost e Power-Walk)
Fork	ROCK SHOX - DOMAIN 29" Boost, DebonAir 170 mm, E-MTB, 44 OFFSET, 1.8 Tapered.
Rear shock	ROCK SHOX - DELUXE Select R , THOK Custom tuned
Brakes	SRAM - Guide T, 4 pistons calipter, 200mm Centerline rotor
Rear derailleur	SRAM - NX, 12s
Shifter	SRAM - SX Eagle Trigger, 12s
Cassette	SRAM - Eagle 12s (11-50)
Chain	SRAM - Eagle 12s
Crank	FSA 165mm - chainring 34T
Wheels	THOK Drift - 29"x30 mm front & 27.5"x35 mm rear
Stem	THOK forged, 35mm front clamp oversize, 37mm length
Handlebar	THOK 35mm, rise 20mm, 780mm width
Grips	THOK - Lock-On grip, regular size
Tires	MAXXIS - Assegai 29x2.6 front & 27.5x2.6 rear. 3C / EXO+ / TR
Seatpost	THOK telescopic dropper post (125mm size S - 150mm size M - 170mm sizes L and XL)
Saddle	THOK Fit in Chromo
Pedals	Pedals in polyethylene
Weight	24,8 Kg Size M without pedals

Specifications are subject to change without prior notice.

HOW TO CHOOSE THE CORRECT SIZE OF YOUR TK01

	S	M	L	XL
TK01	154 - 167cm	168 - 177 cm	178- 184 cm	185cm and over

This size table based on your height is only a suggestion. The optimal frame size also depends on other physical characteristics and personal riding style.
