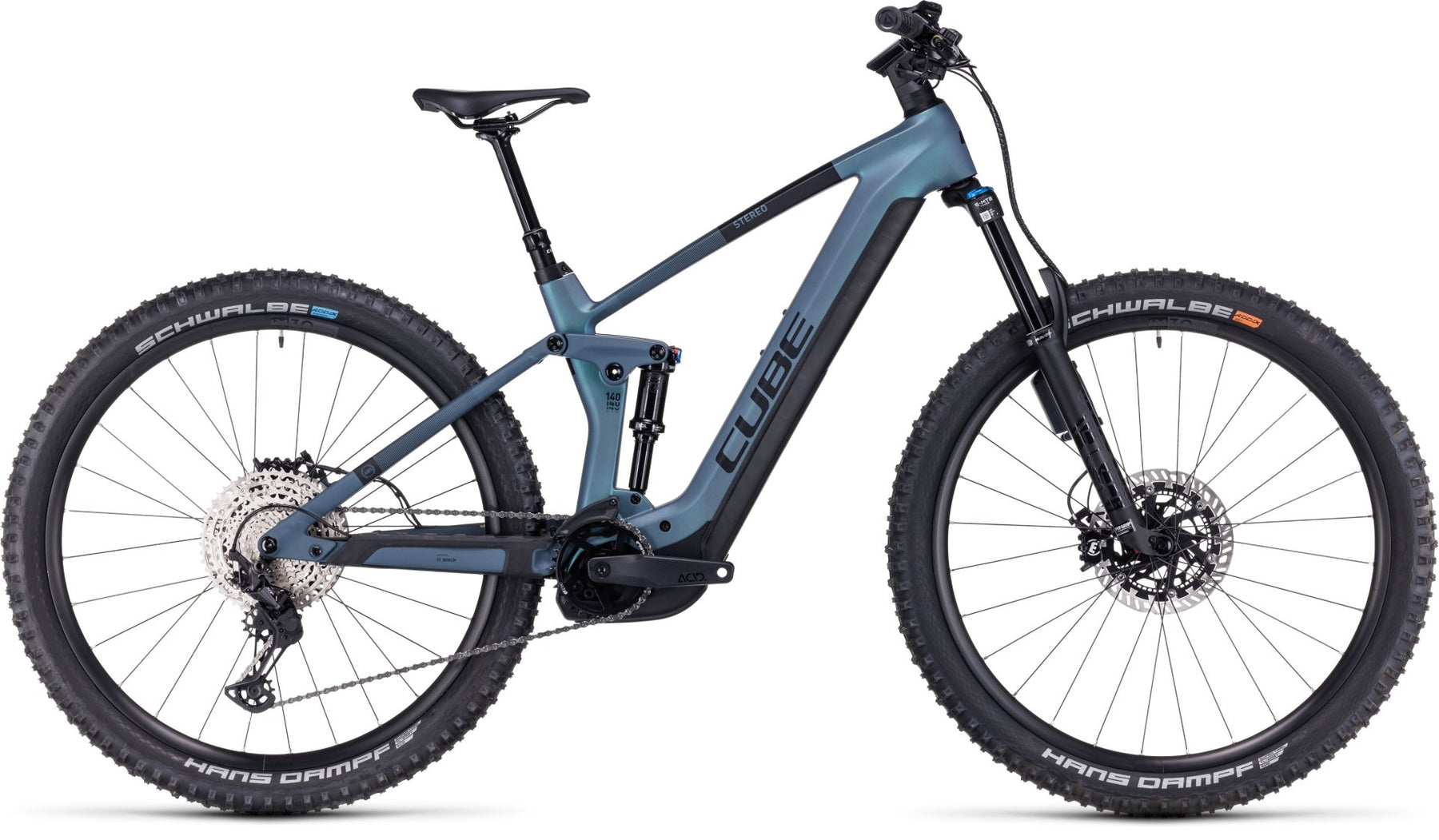

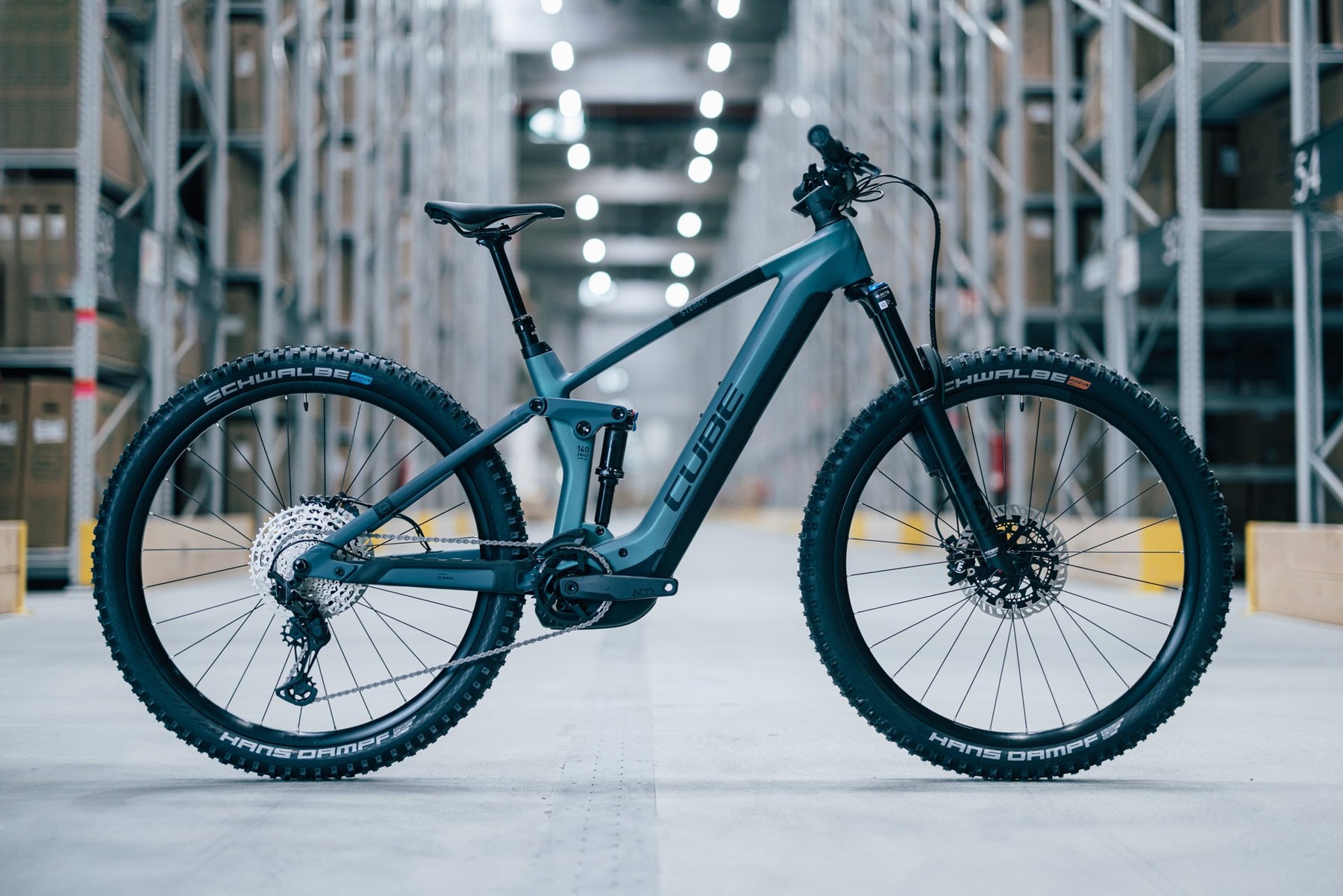

Cube Stereo Hybrid 140 HPC ABS 750 2023 Electric Mountain Bike
Cube Stereo Hybrid 140 HPC ABS 750 2023 Electric Mountain Bike
Cube Stereo Hybrid 140 HPC ABS 750 2023 Electric Mountain Bike
Cube Stereo Hybrid 140 HPC ABS 750 2023 Electric Mountain Bike
Cube Stereo Hybrid 140 HPC ABS 750 2023 Electric Mountain Bike

Cube Stereo Hybrid 140 HPC ABS 750 2023 Electric Mountain Bike

68983316

Regular price £4,799.00 Sale price£4,499.00 Save 6%
/
Tax included. Shipping calculated at checkout.

Size
Size chart

Here you will find the best approximate information on optimal sizing that we can offer. Sizing varies by the manufacturer, type of bike, and other variants but this rough guide should give you a match. Sizing can also be individually subjective so If you have any more specific requirements regarding this information, we highly recommend calling our expert staff on 01268 695877, coming into the shop or speaking to us via Chat/Message!

We also recommend researching the manufacturer of the bike you are interested in directly - many manufacturer websites now offer a dedicated fit/size guide where you can enter your measurements. We hope to offer this service on our website by late 2023.

Scott Bikes Size Chart (click here/see below)



 General E-Bikes (Men & Women)

Your Height Inside Leg Road E-bikes Mountain E-bikes Hybrid/City/Trek E-bikes
147cm-152cm / 4'10"-5'0" 66cm / 26" 47, 48cm (Extra Small) 13” (Extra Small) 13”, 14" (Extra Small)
152cm-160cm / 5'0"-5'3" 69cm / 27" 49, 50cm (Extra Small) 13”, 14” (Extra Small) 14”, 15” (Extra Small or Small)
160cm-170cm / 5'3"-5'7" 71cm / 28" 51, 52, 53cm (Small) 15”, 16" (Small) 15”, 16" (Extra Small or Small or Medium)
170cm-175cm / 5'7"-5'9" 76cm / 30" 54, 55cm (Medium) 17", 18” (Medium) 17", 18” (Small or Medium)
175cm-180cm / 5'9"-5'11" 79cm / 31" 56, 57, 58cm (Medium or Large) 18”, 19" (Medium or Large) 19”, 20" (Medium or Large)
180cm-188cm / 5'11"-6'2" 81cm / 32" 59, 60cm (Large or Extra Large) 19", 20” (Large or Extra Large) 20", 21” (Large or Extra Large)
188cm-196cm / 6'2"-6'5" 86cm / 34" 60, 61, 62cm (Extra Large) 20", 21”, 22” (Large or Extra Large) 21”, 22” (Large or Extra Large)
196cm+ / 6' 5"+ 91cm / 36" 62, 63cm (Extra Large or bigger) 23", 24” (Extra Large or bigger) 23", 24” (Extra Large or bigger)

General Bikes (Men)

Your Height Inside leg Road Bikes Mountain Bikes Hybrid/City Bikes
147cm-152cm / 4'10"-5'0" 66cm / 26" 47, 48cm (Extra Small) 13” (Extra Small) 13”, 14" (Extra Small)
152cm-160cm / 5'0"-5'3" 69cm / 27" 49, 50cm (Extra Small) 13”, 14” (Extra Small) 14”, 15” (Extra Small or Small)
160cm-170cm / 5'3"-5'7" 71cm / 28" 51, 52, 53cm (Small or Medium) 15”, 16" (Small or Medium) 15”, 16" (Small)
170cm-175cm / 5'7"-5'9" 76cm / 30" 54, 55cm (Medium) 17", 18” (Medium) 17", 18” (Medium)
175cm-180cm / 5'9"-5'11" 79cm / 31" 56, 57, 58cm (Medium or Large 18”, 19" (Medium or Large) 19”, 20" (Medium or Large)
180cm-188cm / 5'11"-6'2" 81cm / 32" 59, 60cm (Large or Extra Large) 19", 20” (Large or Extra Large) 20", 21” (Large or Extra Large)
188cm-196cm / 6'2"-6'5" 86cm / 34" 60, 61, 62cm (Large or Extra Large) 20", 21”, 22” Large or Extra Large) 21”, 22” (Large or Extra Large)
196cm+ / 6' 5"+ 91cm / 36" 62, 63cm (Extra Large or bigger) 23", 24” (Extra Large or bigger) 23", 24” (Extra Large or bigger)

General Bikes (Women)

Your Height Inside leg Women's Road Bikes Women's Mountain Bikes Women's Hybrid/City Bikes
147cm-155cm / 4'10"-5'1" 66cm / 26" 44, 45, 46cm (Extra Small or smaller) 13”, 14" (Extra Small or smaller) 13”, 14" (Extra Small or smaller)
155cm-160cm / 5'1"-5'3" 69cm / 27" 47, 48, 49cm (Extra Small or Small) 13”, 14” (
Extra Small or Small)
14”, 15” (Extra Small or Small)
160cm-165cm / 5'3"-5'5" 71cm / 28" 50, 51, 52cm (Small) 15”, 16" (Small) 15”, 16" (Small)
165cm-172cm / 5'5"-5'8" 76cm / 30" 53, 54, 55cm (Medium) 17", 18” (Medium) 17", 18” (Medium)
172cm+ / 5'8"+ 79cm / 31" 56, 57cm (Large) 19" (Large) 19" (Large)

General Bikes (Kids)

Approx. age Min. inside leg Wheel size
1-2 years 24cm / 9" 10"
2-3 years 31cm / 12" 12"
3-4 years 38-43cm / 15-17" 14"
4-5 years 48cm / 19" 16"
5-7 years 52-58cm / 20-23" 20"
8-12 years 62-67cm / 24-26" 24"
10-14 years 69-78cm / 27-31" 26"
  • Available to order from distribution. It is possible not all/any sizes are in-store, please ask. Delivery will take a few extra days.
  • FREE Premium Delivery Over £1000
  • 30 Day No-Hassle Returns, Full Manufacturer Warranty
  • FREE Bike Build and/or Minimal Assembly
  • Les's Cycles - Open Since 1976!

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Evolution never stops. That's why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover. It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.

MODERN CARS ARE FULL OF SAFETY TECHNOLOGY – AND NOW YOUR BIKE CAN BE, TOO. WITH BOSCH'S SOPHISTICATED SECOND-GENERATION ANTI-LOCK BRAKE SYSTEM, CUBE KINEMATICS AND THE EXTRA POWER AND RANGE OF A BOSCH CX MOTOR WITH HIGH-CAPACITY BATTERY, THE STEREO HYBRID 140 HPC ABS IS A MOUNTAIN BIKE LIKE NO OTHER.

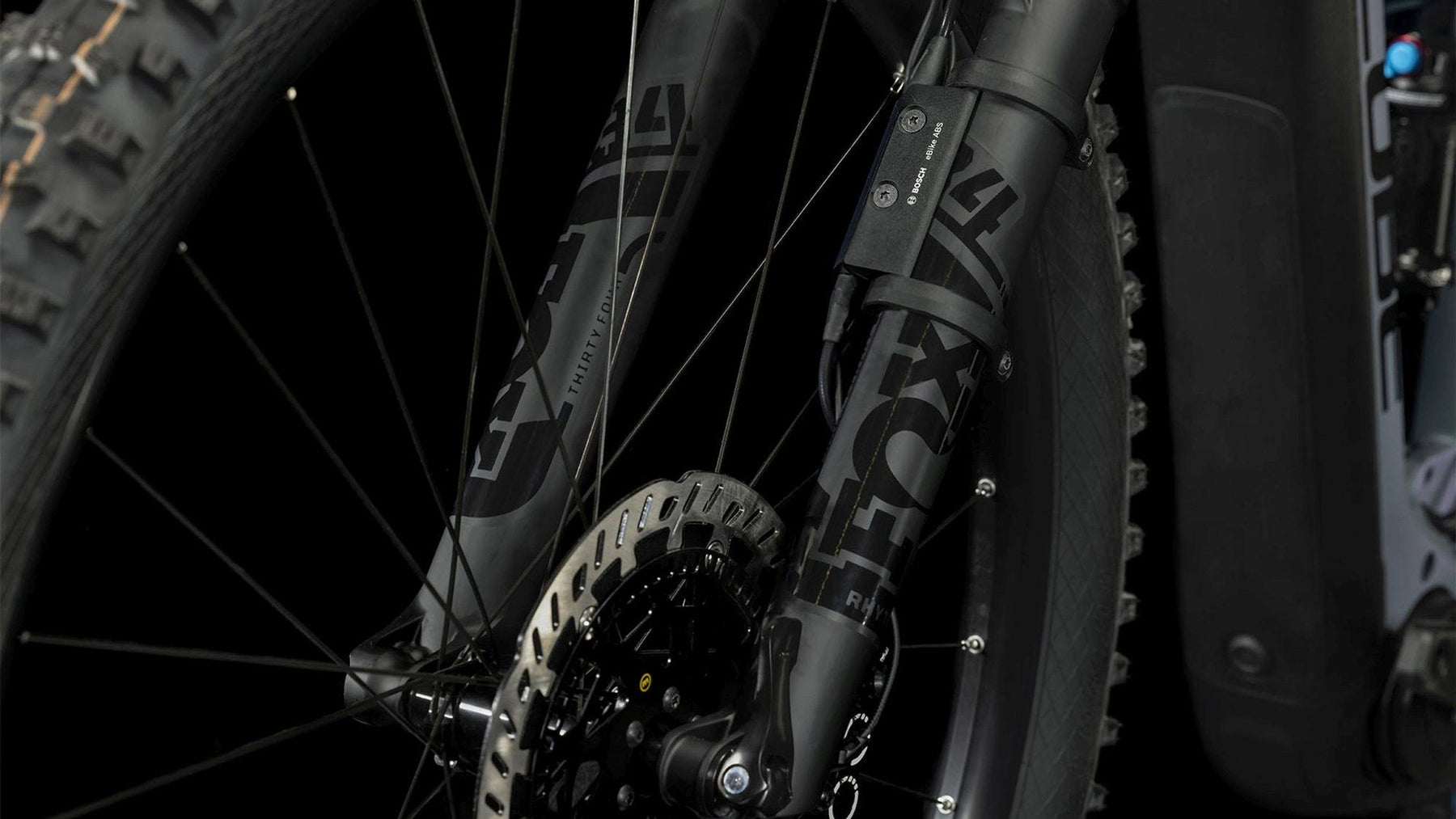

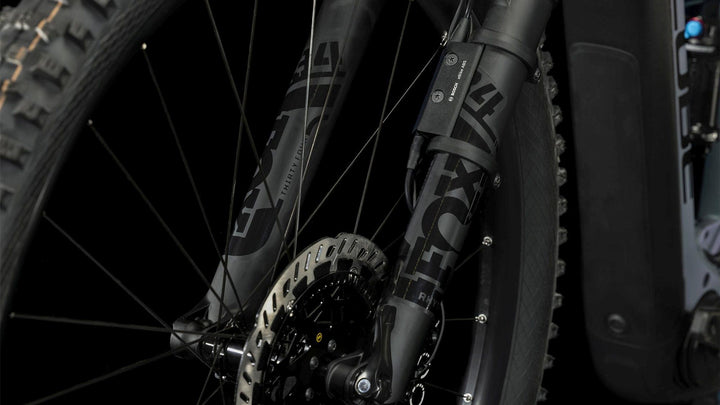

The more adventurous your riding, the more important it is that you're in full control. For the new Stereo Hybrid 140 HPC ABS we've taken that idea to heart by fitting it with Bosch's sophisticated second-generation anti-lock brake system. This lightweight, integrated system works seamlessly with Magura's MT C ABS brakes to modulate front brake power, helping to reduce stopping distances and allowing you to brake later, harder, in safety. Meanwhile, Shimano's wide-ranging 1x12 XT gears harness the fourth-generation Bosch CX drive unit's power to make light work of any trail. A Fox 34 Rhythm fork and Float DPS Performance shock isolate you from rocks and roots, while the Newmen wheelset and 2.6in Schwalbe tyres offer sure-footed grip. A dropper post – for extra comfort and control on steep descents – is the finishing touch to make sure you're the boss.

Model code 689833
Colour smaragdgrey/blue
Net weight 27 Kg

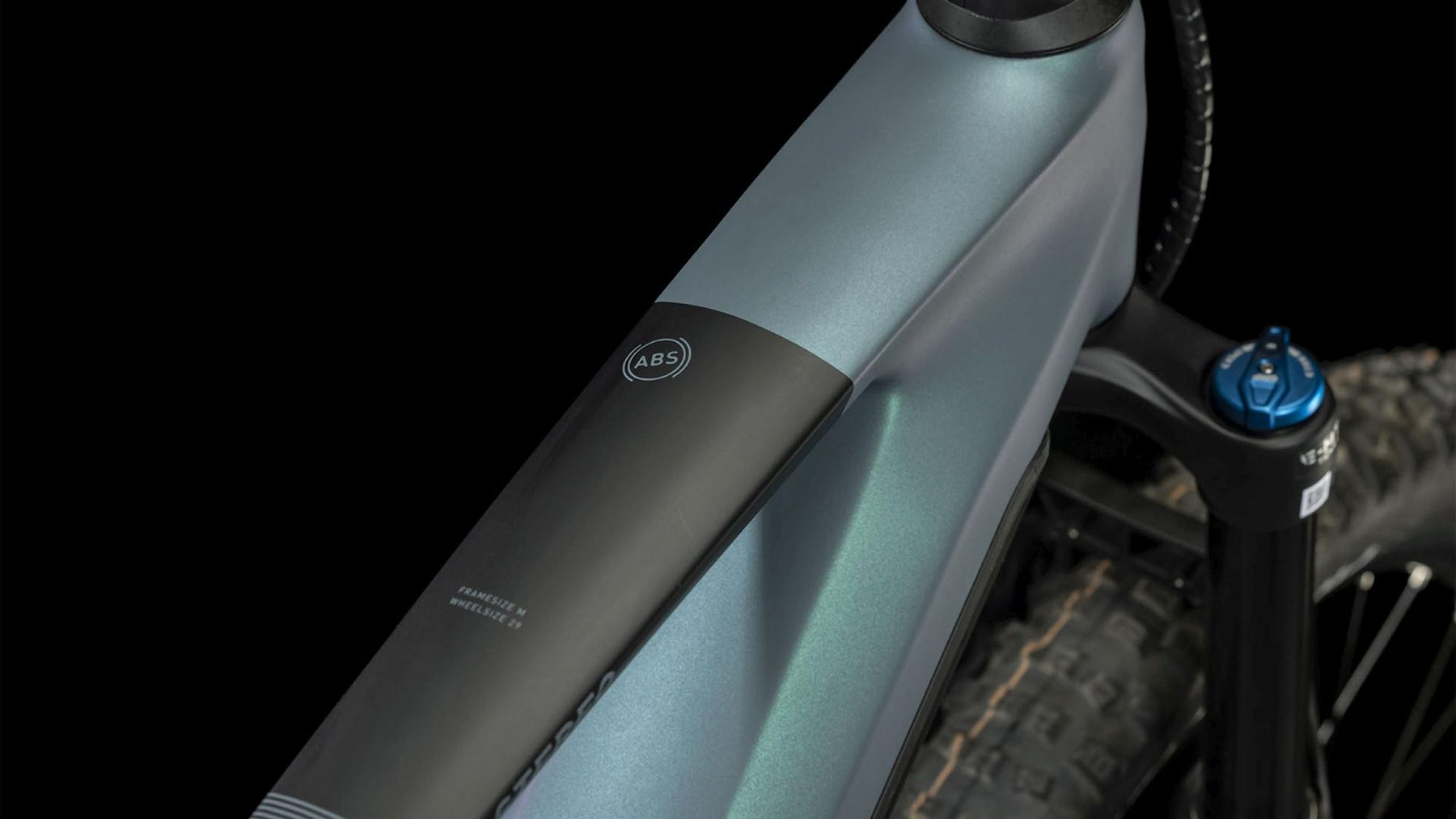

Frame description C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Fork Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm
Shock Float DPS EVOL, 205x60mm (27.5: 185x55mm), Open/Medium/Firm Mode, Trunnion Mount
Headset AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem Cube Performance Stem E-MTB, 31.8mm
Handlebar Newmen Evolution SL 318.25, 780mm
Handlebar tape/Grips Acid Disrupt, Soft Compound
Seatpost Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp Cube Screwlock Semi Integrated, 34.9mm
Saddle Natural Fit Venec
Rear derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Crankset Acid E-Crank, 165mm (27.5: 36T // 29: 34T)
Cassette Shimano Deore CS-M6100, 10-51T
Chain Shimano CN-M6100
Shifters Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Primary braking system front Magura CT Allroad eSTOP ABS, Hydr. Disc Brake (203/203)
Primary braking system rear Magura CT Allroad eSTOP ABS, Hydr. Disc Brake (203/203)
Wheels Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
Pedals Included
Engine Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery Bosch PowerTube 750

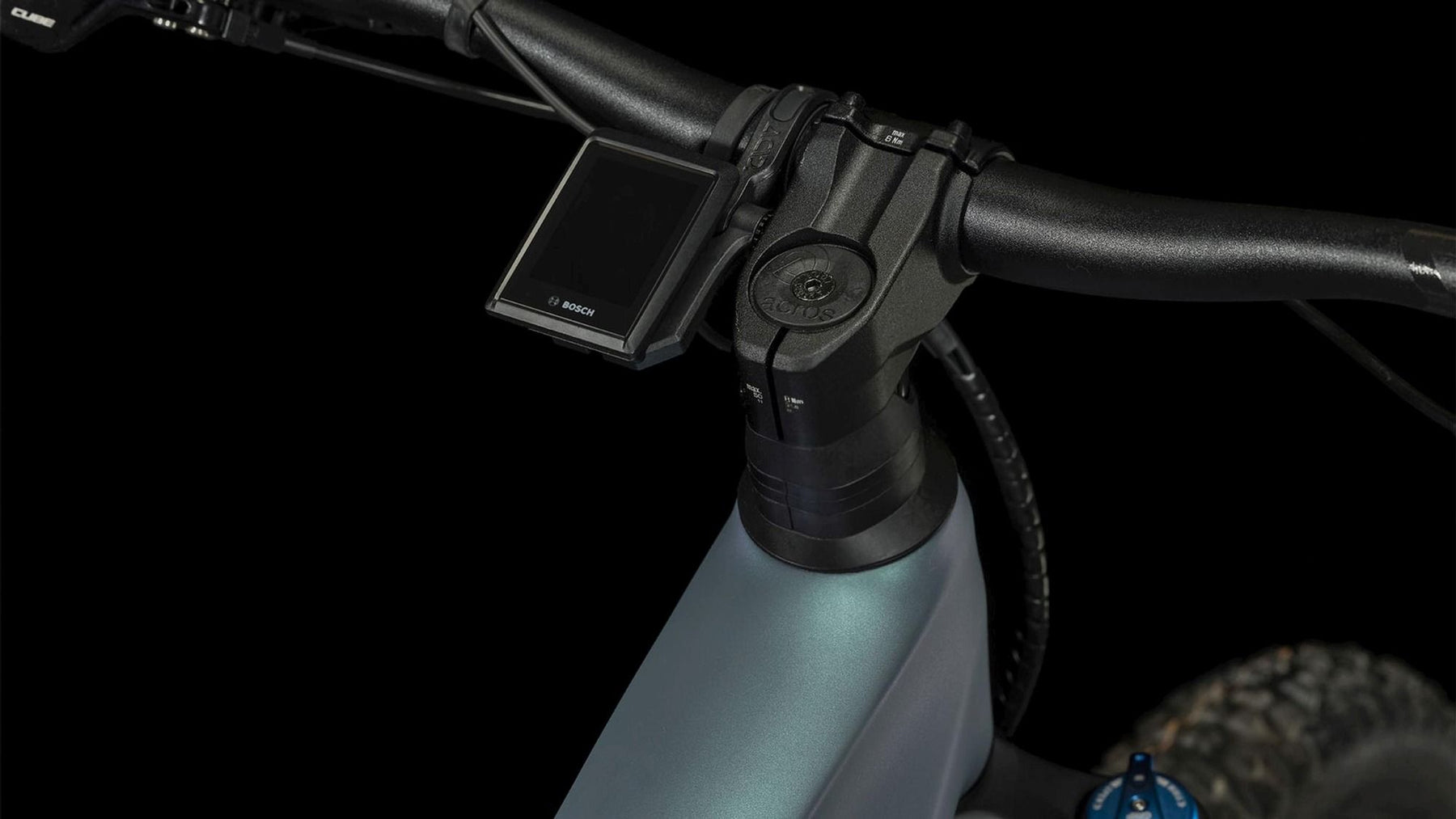

Display Bosch Kiox 300
